1800 Tons for the Toughest Thick Boards

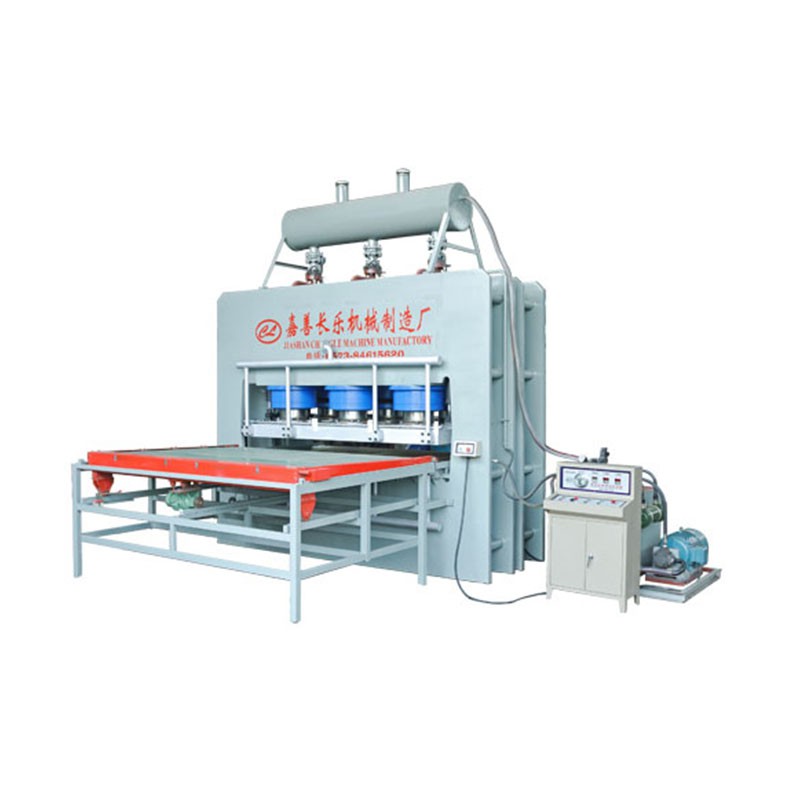

Some boards are just hard to press. They are too thick. Too dense. Too hard. Normal presses cannot handle them. Our Hydraulic Press for Plywood is different. It gives you 1800 tons of pressure. That is our biggest model for wood products. A door maker in Guangdong bought this press from us. The first board came out perfect. They passed a tough test and got a three-year supply deal. No other supplier could match that. The Hydraulic Press for Plywood is for shops that take on the hardest jobs.
Heat Comes from Both Sides for Speed
Single side heating is too slow for thick boards. So we use top and bottom plates that heat together. This cuts your press cycle time by over 30%. The two sides can run at different temperatures too. Each side has its own smart control. This lets you match the heat to your glue and your wood. Your boards will have strong glue bonds from edge to edge. We also include an auto loader and unloader with suction cups. The machine pulls the board in. It pushes it out. No one needs to touch it. This saves you labor costs and stops worker injuries.
A Heavy Body That Will Not Move

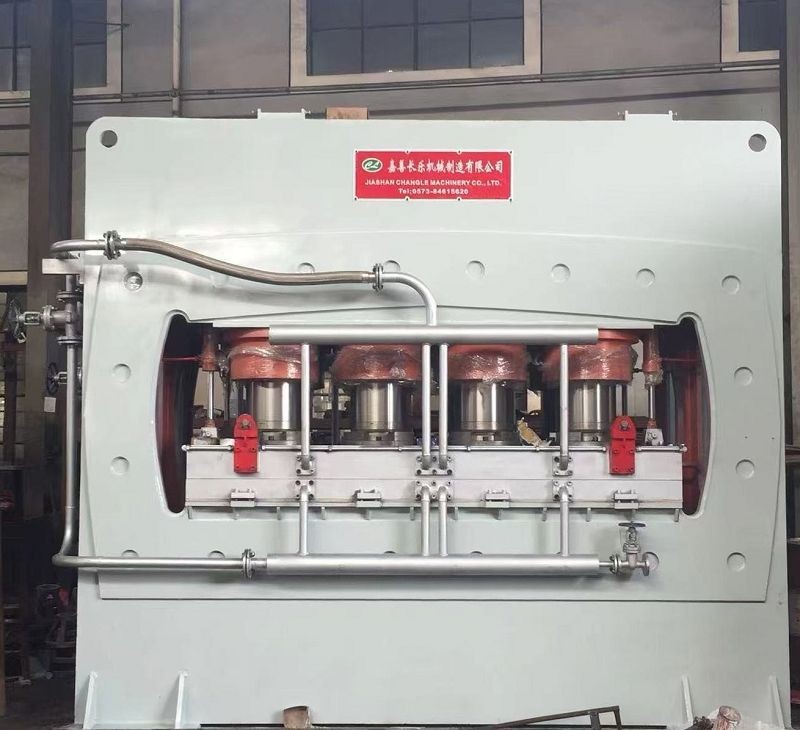

This press runs at 1800 tons. That is a huge force. The frame must be very strong. We build it from heavy steel plate. We weld it together and then remove the internal stress. The body will not bend or crack even after years of hard use. The main cylinder has a sync tool to keep pressure even. Your boards will come out flat and smooth. Here are the full specs.
|
Parameter |
Value |
|
Rated Pressure |
1800T |
|
Main Cylinder |
Ø320*8 pcs |
|
Lift Cylinder |
Ø65*4 pcs |
|
Top Platen Size |
2600mm1400mm140mm |
|
Bottom Platen Size |
2600mm1400mm100mm |
|
Platen Material |
Q355B Steel |
|
Platen Gap |
240mm |
|
Control |
PLC Full Auto with Touch Screen |
|
Motor Power |
22.75KW (with servo motor) |
|
Clamping Plate Material |
Low-Alloy Steel |
|
Heat Source |
Thermal Oil |
We set up your machine and train your team. This press is fast, strong, and saves labor. Want to take orders others cannot fill? Contact us to build this production tool.
