Your Middle Ground Between Manual and Full Auto
Not every factory needs a fully automatic line. You might want to save on machine cost but still cut your labor bill. Our Semi Automatic Hot Press fits right here. A medium plywood factory in Zhejiang had 20 people on their hot press line. They switched to this semi-auto model. Now they run with only 8 workers. Their daily output went up two times. That is not a small gain. The Semi Automatic Hot Press gives you the best of both worlds. You get high output without paying for full automation.
One Button Does the Heavy Job
Your worker puts the board on the feeder. Then they press start. The Semi Automatic Hot Press takes over from there. It sends the board in. It presses. It holds. It sends the board out. Your worker just stacks the finished goods. The touch screen and PLC make it easy. You set the heat, pressure, and cycle time once. The machine saves it. You can switch between different board types in seconds. The machine also watches itself. If something goes wrong, it shows the fault on the screen. Overload and overheat alarms keep your shop safe.
No More Lifting Heavy Boards to High Places

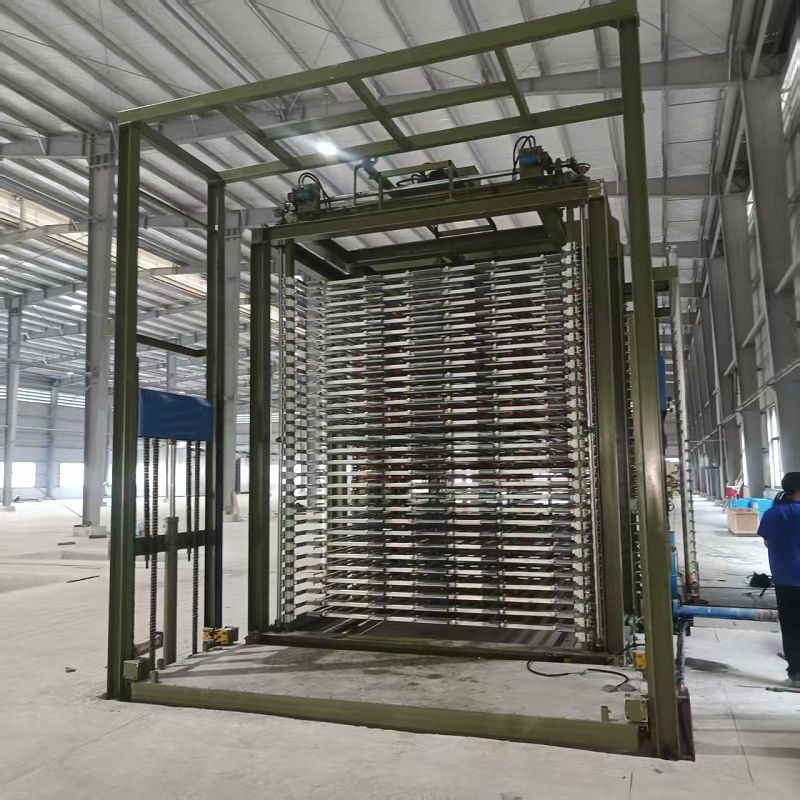

A 35-layer press is tall. Loading boards up high is hard on your workers. We fixed this. Our Semi Automatic Hot Press comes with cage lifts on both ends. The lift brings the board to the right height. Your worker does not need to reach up or bend down. You can also add roller conveyors to the lifts. This makes the whole line flow better. Your workers will thank you. Take a look at the specs below.
|
Parameter |
Value |
|
Rated Pressure |
800T |
|
Main Cylinder |
Ø320*4 pcs, Lift Cylinder Ø180*2 pcs |
|
Platen Size |
2700mm1370mm42mm |
|
Custom Sizes |
4x9 ft, 5x10 ft, or others |
|
Platen Material |
Q355B Low Alloy Steel |
|
Platen Gap |
75mm |
|
Closing Time |
30 seconds |
|
Cycle Time |
3 to 8 minutes |
|
Control |
PLC Semi-Auto with Touch Screen |
|
Motor Power |
42.5KW |
|
Clamping Plate Material |
Low-Alloy Steel |
|
Heat Source |
Thermal Oil or Steam |
We have built presses for 26 years. We will send a team to set up your machine. We will train your people. The core parts are made to last. You can run this press 24 hours a day. Let us help you take the next step up from manual work.
