800 Tons with 6 Cylinders for Thick Multi-Layer Boards
We keep pushing the limits of pressure. The Woodworking Cold Press Machine is our answer for extra thick boards. It uses 6 main cylinders. Each one is Ø280mm. Together they give you 800 tons of force. Why 6 cylinders? Because more cylinders spread the pressure more evenly. A high density board maker in Anhui uses this press. They need very high pressure and perfect uniformity. Our 800 ton press met their needs. The density variation across their boards is less than 1%. That is very good.
Six Cylinders Work Together for Even Pressure

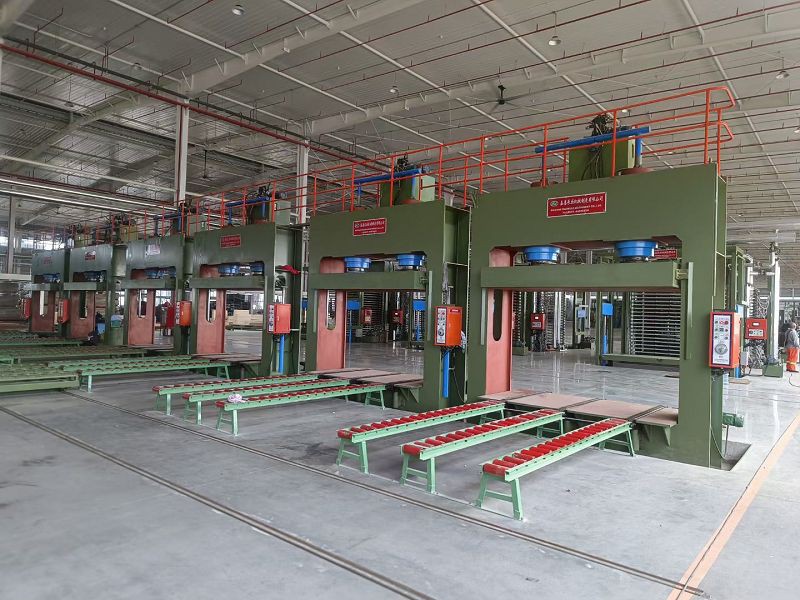

Most cold presses use 2 cylinders. The Woodworking Cold Press Machine uses 6. They all work together. The pressure is the same everywhere on your board. No weak spots. No warps. The hydraulic system uses good parts and seals. It runs smooth and quiet. No leaks. The frame is welded steel. We remove the internal stress so it stays straight. Even under 800 tons, it will not bend. The frame leaves lots of room for big boards. The table support has extra reinforcement.
Custom Sizes and Options Available

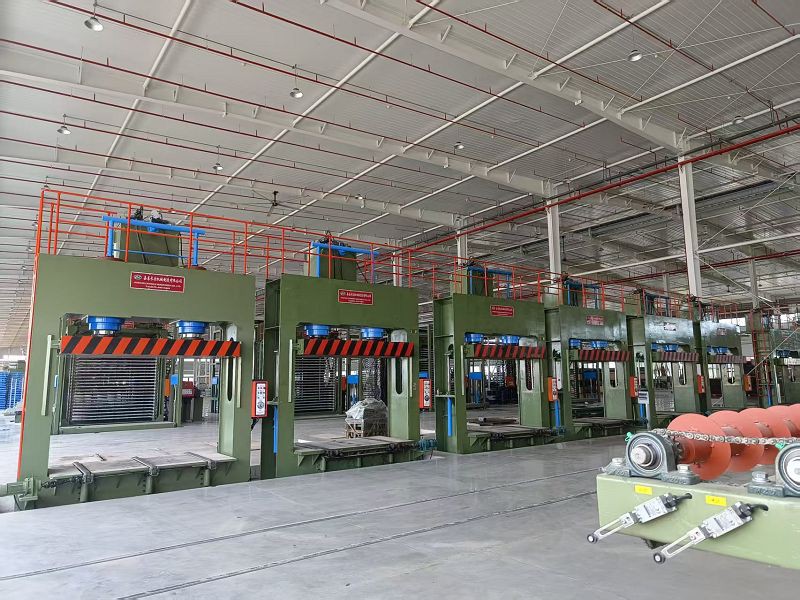

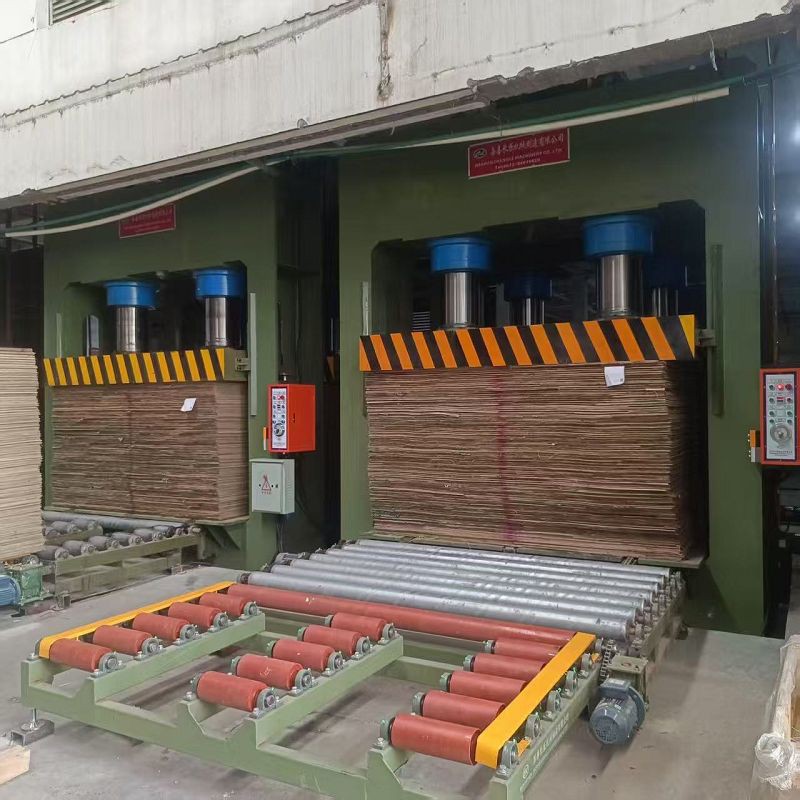

We know every shop is different. You can customize the table size. You can customize the inner height. We can also build a special control system for you. The table has rollers. Your workers can slide boards in and out. You can also add a chain conveyor. The top of the press has safety rails. The moving plate has yellow and black stripes. The control box has an emergency stop button. We also added a safety lock. Here are the specs.
|
Parameter |
Value |
|
Rated Pressure |
800 tons |
|
Table Size |
2700mm*1370mm |
|
Custom Sizes |
4x9 ft, 5x10 ft, or others |
|
Main Cylinder |
Ø280*6 pcs |
|
Support Cylinder |
Ø80*2 pcs |
|
Cylinder Stroke |
800mm |
|
Inner Height |
1800mm (customizable) |
|
Drive Type |
Six-cylinder hydraulic sync drive |
|
Control |
Manual or Semi-Auto |
|
Motor Power |
11KW (12.5KW with power conveyor) |
|
Machine Size |
3450mm1400mm3550mm |
|
Weight |
About 13 tons |
We give you one-stop service. This press has a low failure rate and a long life. Want to make special boards others cannot make? Our 800 ton cold press is your answer.
