Front and Back Rollers for Two-Side Gluing
Flipping boards is slow. It also adds a chance to scratch your product. Our Plywood Glue Spreader Machine uses a different design. The two sets of rollers are placed front and back. The board goes in from the front. The first set glues the top. The board moves forward. The second set glues the bottom. One pass. Two sides done. No flipping. A client told us their output tripled after switching to this machine. They cut their labor from three people to one. And their boards had no more scratches from flipping.
Four Rollers in a Front-Back Layout

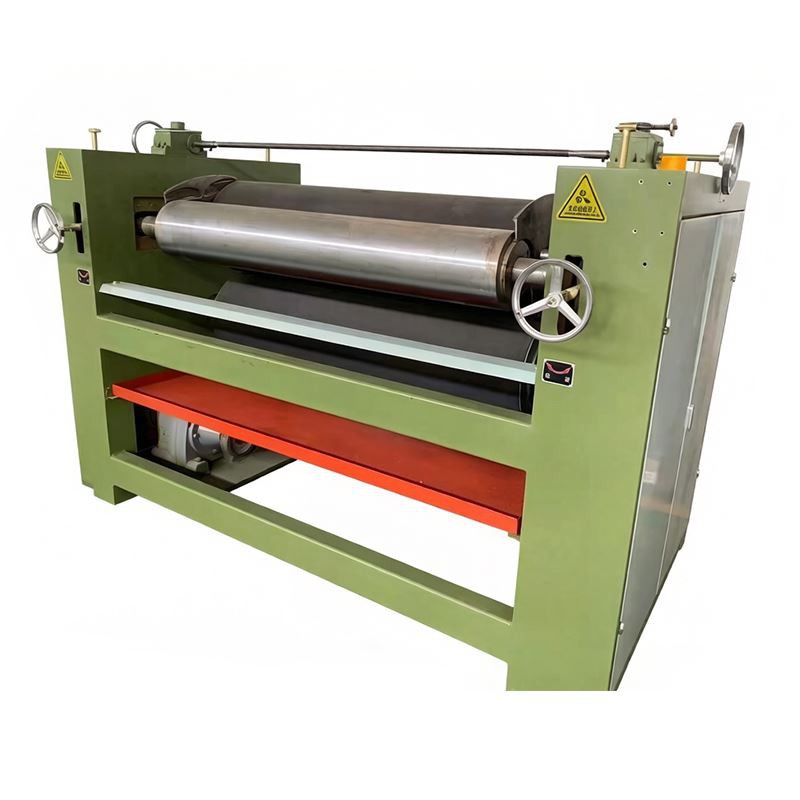

The Plywood Glue Spreader Machine has four rollers. Two rubber rollers. Two chrome glue rollers. The front pair glues the top. The back pair glues the bottom. You can adjust the gaps by turning hand wheels. This lets you control the glue amount on each side. The built-in glue tanks have side seals. No leaks. No glue waste. You save 15% to 25% compared to hand gluing. The motor is 2.2KW. You can add a variable speed controller. The drive system is smooth. No jamming.
Built for Daily Shop Use
The chrome rollers are mirror polished. Glue does not stick. They resist rust and wear. The rubber rollers use natural rubber at 50 hardness. The frame is thick steel plate. No shaking. The machine has an emergency stop button and safety guards. Core parts come off for easy cleaning. Daily cleaning and maintenance are simple. Here are the specs.
|
Parameter |
Value |
|
Rubber Roller Size |
Ø280*1500mm (Natural rubber, 50 hardness) |
|
Glue Roller Size |
Ø190*1500mm (Chrome plated alloy) |
|
Roller Arrangement |
Front and back |
|
Glue Type |
Double side |
|
Motor Power |
2.2KW (upgrade to variable speed) |
|
Machine Weight |
About 1300kg |
|
Machine Size |
2760mm750mm1500mm |
We have 26 years behind us. We give you one-stop setup and training. This machine is a forced upgrade for shops still doing two passes. Contact us to glue both sides in one go.
