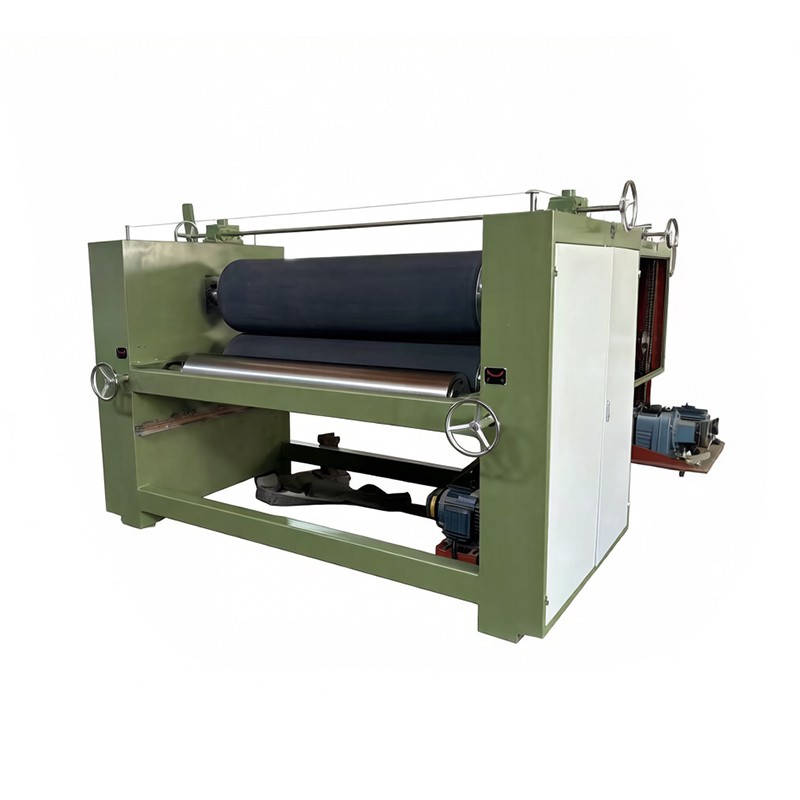

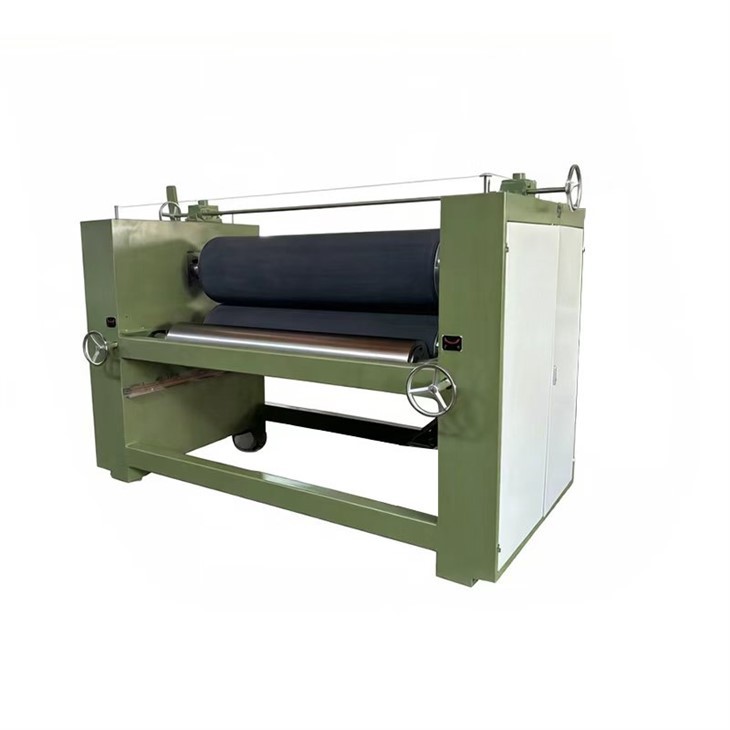

A Big Ø400mm Roller for Thick Glue and Heavy Coats
Some glues are thick. Some boards need a heavy coat of glue. Small rollers struggle with this job. Our Veneer Gluing Machine uses a Ø400mm roller. That is much bigger than standard rollers. The bigger size gives you more glue on the board. It also handles thick glue better. The machine has three rollers. One puts on the glue. Two squeeze it to the right thickness. You can adjust the gap by turning hand wheels. This works for different board thicknesses and different glue types. No more uneven glue. No more missed spots.
Built to Save You Glue and Labor
Glue waste is a hidden cost. The Veneer Gluing Machine has a built-in glue tank with side seals. Glue stays where it belongs. This saves you 15% to 25% compared to gluing by hand. The motor is 4KW. That is more power than smaller models. The drive system is strong and precise. No jamming. No stopping. One worker runs the machine. They can feed boards all shift long. Your output goes up. Your glue bill goes down. We also include a variable speed controller as standard on this model.
Strong Build for Daily Use
The chrome roller is mirror polished. Glue slides right off. It resists rust and wear. The rubber roller uses natural rubber. It is 50 on the hardness scale. You can add threads to the rubber or leave it smooth. The frame uses thick steel plate. No shaking during work. The machine has an emergency stop button and safety guards. Core parts come off for easy cleaning. Daily maintenance is simple. Here are the specs.
|
Parameter |
Value |
|
Rubber Roller Size |
Ø400*1500mm (Natural rubber, 50 hardness) |
|
Glue Roller Size |
Ø240*1500mm (Chrome plated alloy) |
|
Glue Type |
Single side |
|
Motor Power |
4KW (with variable speed) |
|
Machine Weight |
About 1900kg |
|
Machine Size |
3000mm950mm1500mm |
We give you one-stop setup and training. This machine is a good choice for upgrading your gluing line. Contact us to get better glue results.
