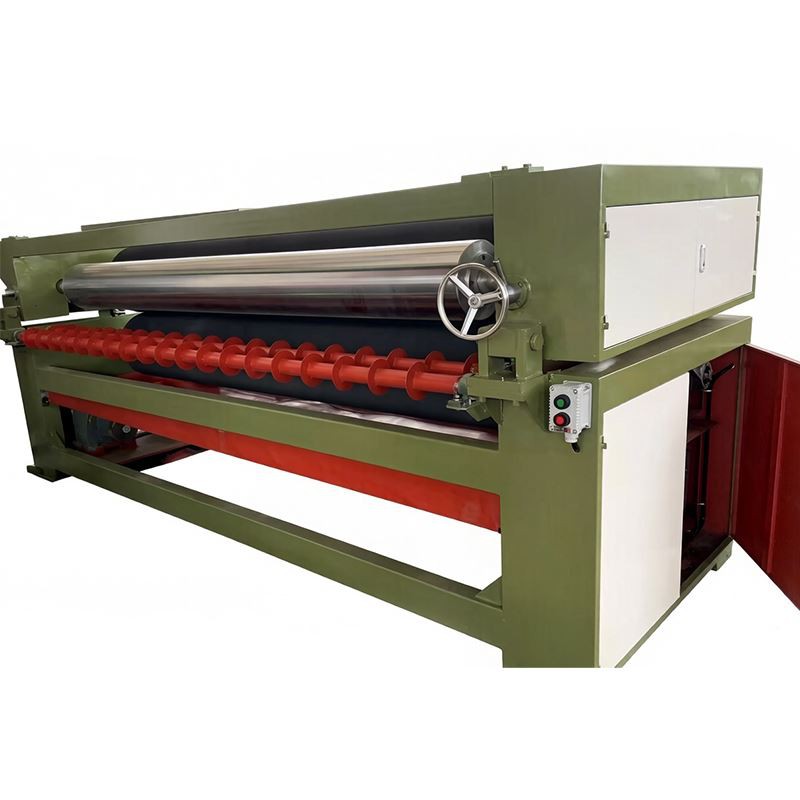

A 2.4 Meter Wide Roller for Big Boards
Big boards need big machines. Small gluers cannot cover an 8 foot wide board. You would have to run it through twice. Our Board Gluing Machine has a 2700mm wide roller. That covers a full 4x8 foot board in one pass. No second pass needed. No wasted time. The machine uses three rollers. One puts on the glue. Two squeeze it to the right thickness. You can adjust the gaps by turning hand wheels. This works for different board thicknesses and different glue types. Glue goes on even from edge to edge.
Heavy Duty Build for Heavy Work
Big boards are heavy. The Board Gluing Machine is built for heavy work. The rubber roller is Ø420mm. That is very big. The glue roller is Ø270mm. Both are made from quality materials. The rubber is natural rubber at 50 hardness. The chrome roller is mirror polished. Glue does not stick. It resists rust and wear. The motor is 4KW with a variable speed controller. The drive system is precise. No jamming. The frame uses thick steel plate. No shaking even under heavy load.
Save Glue and Save Labor
The built-in glue tank has side seals. Glue does not leak out. This saves you 15% to 25% compared to hand gluing. One worker runs the machine. They feed boards from one end. The machine does the rest. Your labor cost goes down. Your output goes up. The machine has an emergency stop button and safety guards. Core parts come off for cleaning. Here are the specs.
|
Parameter |
Value |
|
Rubber Roller Size |
Ø420*2700mm (Natural rubber, 50 hardness) |
|
Glue Roller Size |
Ø270*2700mm (Chrome plated alloy) |
|
Glue Type |
Single side |
|
Motor Power |
4KW (with variable speed) |
|
Machine Weight |
About 3000kg |
|
Machine Size |
3750mm1400mm1700mm |
We have 26 years of experience. We set up your machine and train your workers. This gluer is a good choice for big board shops. Contact us to improve your gluing line.
