400 Tons in a Strong Frame for Glue Bonding
Not every press needs heat. Cold pressing is a key step for plywood and floor base materials. But the pressure must be even. Our Hydraulic Cold Press is made for this job. It has a strong frame and two cylinders. A big floor brand in China bought 4 of these from us. Their old cold press gave uneven pressure. Their base boards came out not flat. After switching to our press, their flatness pass rate hit 99.5%. Their waste went to zero. The Hydraulic Cold Press gives you steady, even pressure on every board.

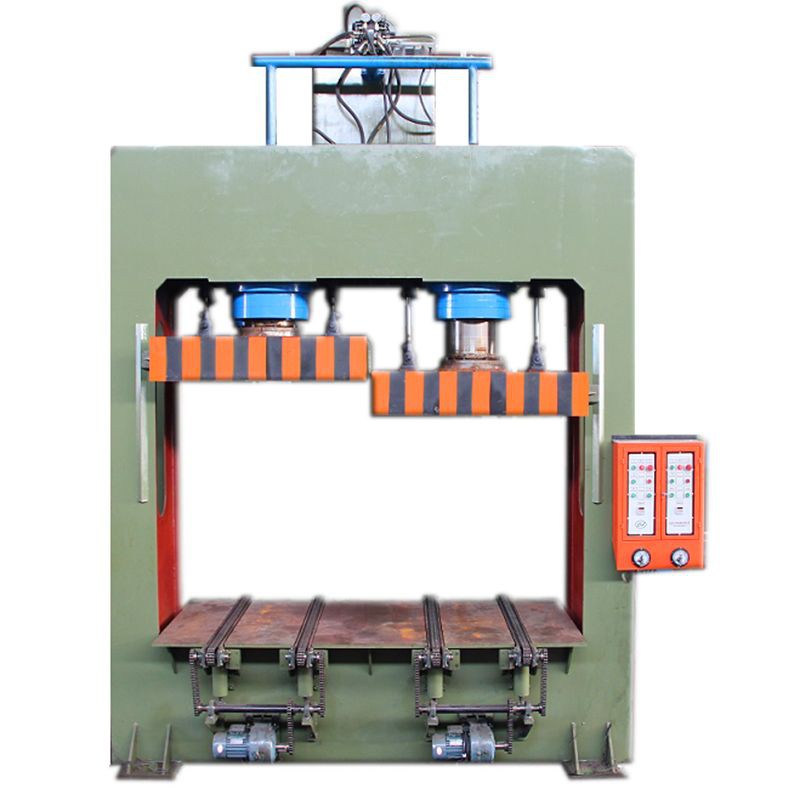

Two Cylinders Give Even Pressure Across the Whole Board
Old presses with one cylinder push harder in the middle. Not ours. The Hydraulic Cold Press uses two main cylinders. Each one runs on its own. The pressure is the same from left to right. Every part of your board gets the same squeeze. No more warps. No more weak glue bonds. The hydraulic system uses good parts and seals. It runs smooth and quiet. No leaks. You can set the pressure exactly where you need it for each board type. The strong frame leaves lots of open space. Big boards fit with room to spare.

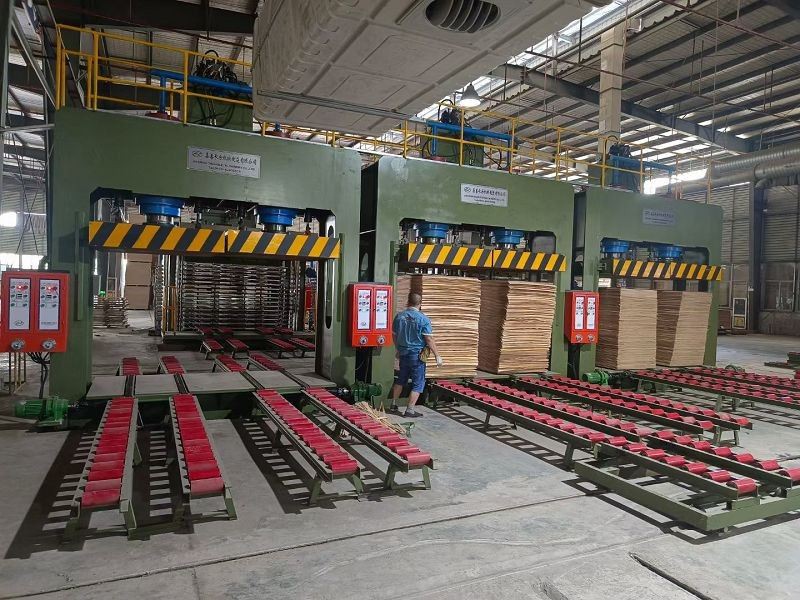

Safety Features and Easy Rollers for Loading
We put safety rails on top of the press. This keeps your workers safe during repairs. The moving plate has yellow and black warning stripes. The control box has an emergency stop button and pressure control. For easy loading, the table has rollers. Your workers can slide boards in and out with less effort. You can also upgrade to a chain-driven power conveyor. The table support is reinforced. It will not bend even under 400 tons. Here are the specs.
|
Parameter |
Value |
|
Rated Pressure |
400 tons |
|
Table Size |
1450mm*1370mm (2 tables) |
|
Main Cylinder |
Ø320*2 pcs |
|
Support Cylinder |
Ø80*4 pcs |
|
Cylinder Stroke |
800mm |
|
Inner Height |
1800mm (customizable) |
|
Drive Type |
Separate cylinder drive |
|
Control |
Manual or Semi-Auto |
|
Motor Power |
7.5KW (9.7KW with power conveyor) |
|
Machine Size |
3600mm1400mm4300mm |
|
Weight |
About 12 tons |
We give you one-stop service. This press has low failure rate and can run 24/7. Choose us for stable cold pressing.
