600 Tons of Force for Heavy Duty Boards

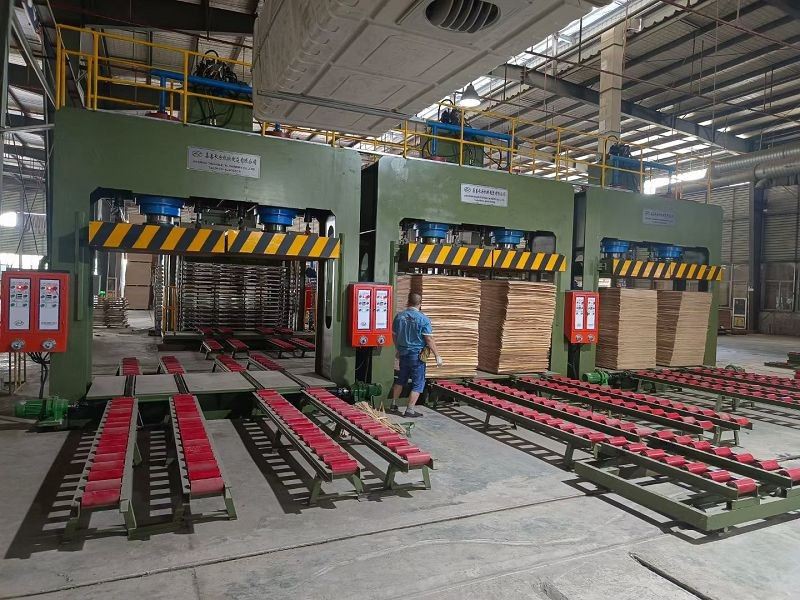

We like to push the limits of pressure technology. The Cold Forming Press is our biggest standard cold press. It has a strong frame and two large cylinders. A big floor brand in China uses this model. Their old cold press gave uneven pressure. Their boards were not flat. After switching to our press, their flatness pass rate hit 99.5%. Their waste went to zero. The Cold Forming Press is for shops that press the heaviest, thickest boards.
Extra Large 400mm Cylinders
To reach 600 tons, we use Ø400mm main cylinders. That is very big. The two cylinders run on their own. The pressure is the same from left to right. Every part of your board gets the same squeeze. No warps. No weak glue bonds. The hydraulic system uses good parts and seals. It runs smooth and quiet. No leaks. The frame is welded steel. We remove the internal stress so it stays straight. Even under 600 tons day after day, it will not bend. The frame leaves lots of open space for big boards.
Heavy Rollers for Heavy Boards
Heavy boards are hard to move. We made it easier. The table has rollers. Your workers can slide boards in and out with less effort. You can also add a chain conveyor. The table support is reinforced for 600 tons. It will not bend. The top of the press has safety rails. The moving plate has yellow and black stripes. The control box has an emergency stop button. Our hydraulic system uses less energy than older designs. You save power and get more output. Here are the specs.
|
Parameter |
Value |
|
Rated Pressure |
600 tons |
|
Table Size |
1450mm*1370mm (2 tables) |
|
Main Cylinder |
Ø400*2 pcs |
|
Support Cylinder |
Ø80*4 pcs |
|
Cylinder Stroke |
800mm |
|
Inner Height |
1800mm (customizable) |
|
Drive Type |
Separate cylinder drive |
|
Control |
Manual or Semi-Auto |
|
Motor Power |
7.5KW (9.7KW with power conveyor) |
|
Machine Size |
3600mm1400mm4300mm |
|
Weight |
About 14 tons |
We give you one-stop service. This press has a low failure rate and a long life. Want to take on the hardest pressing jobs? Our 600 ton cold press is your best partner.
