No Motor. No Power. Just Smooth Rolling.

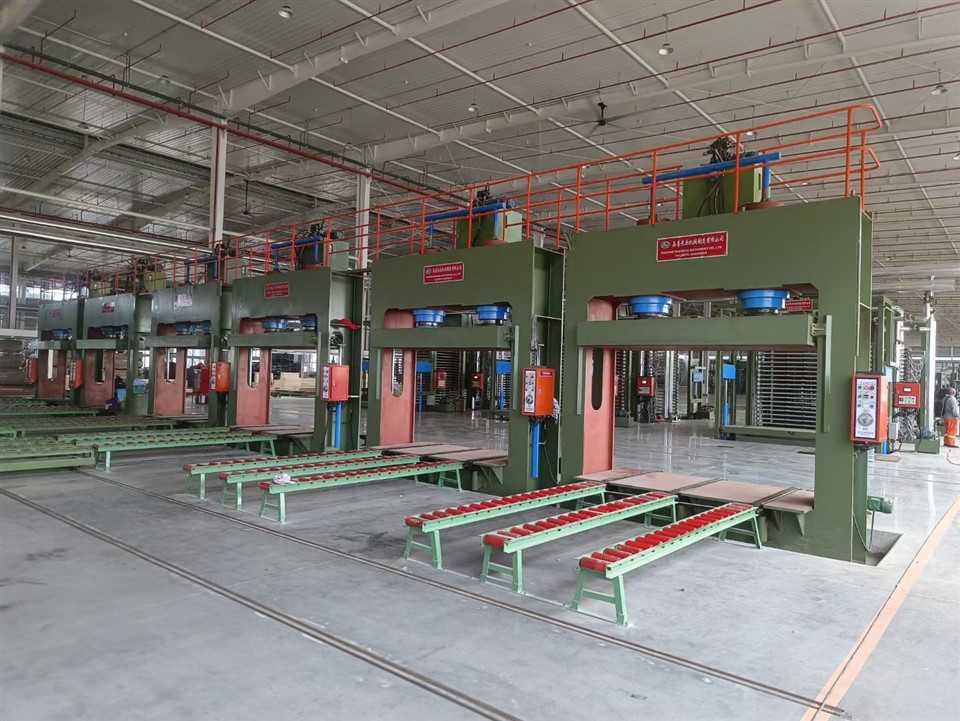

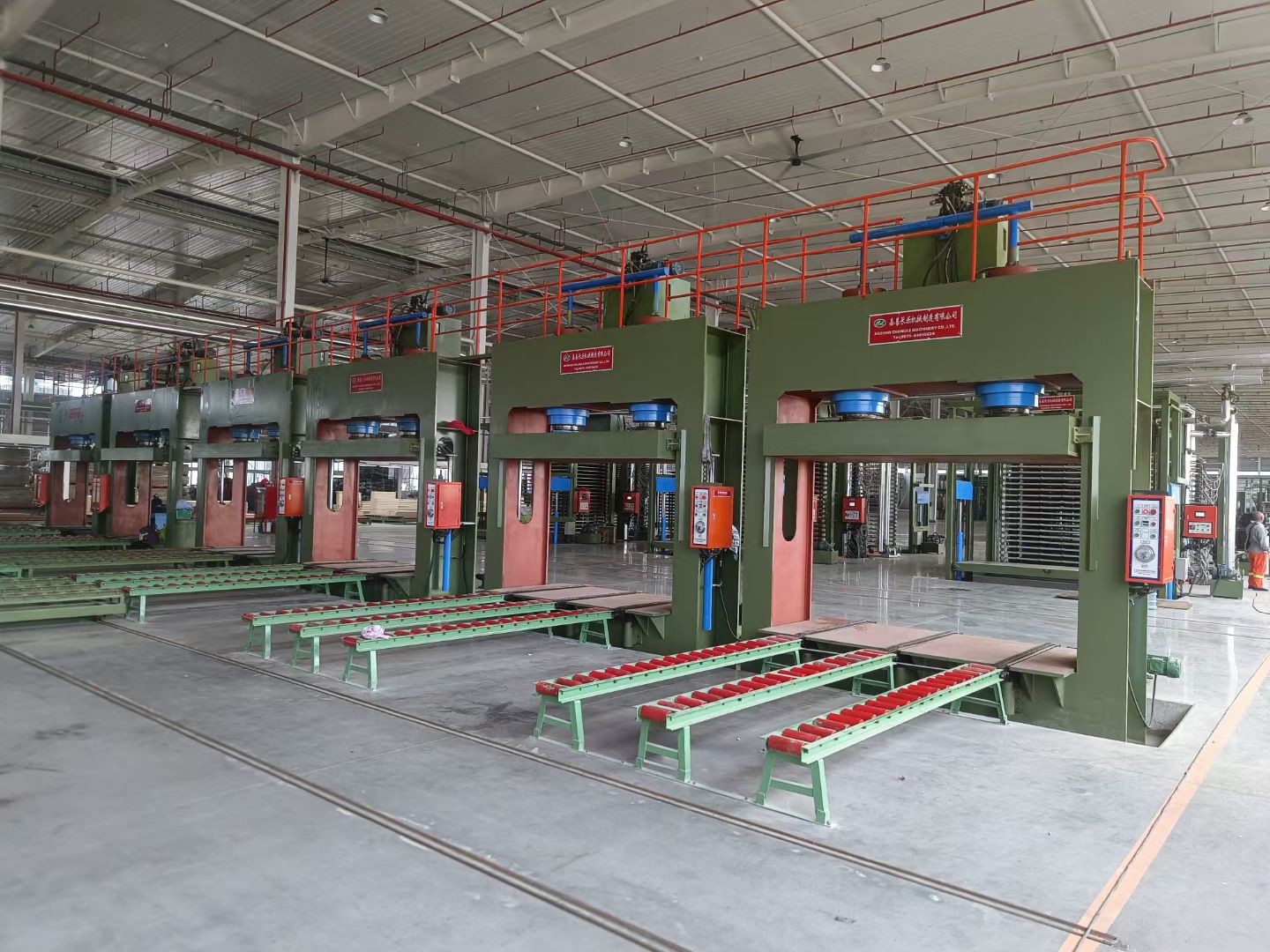

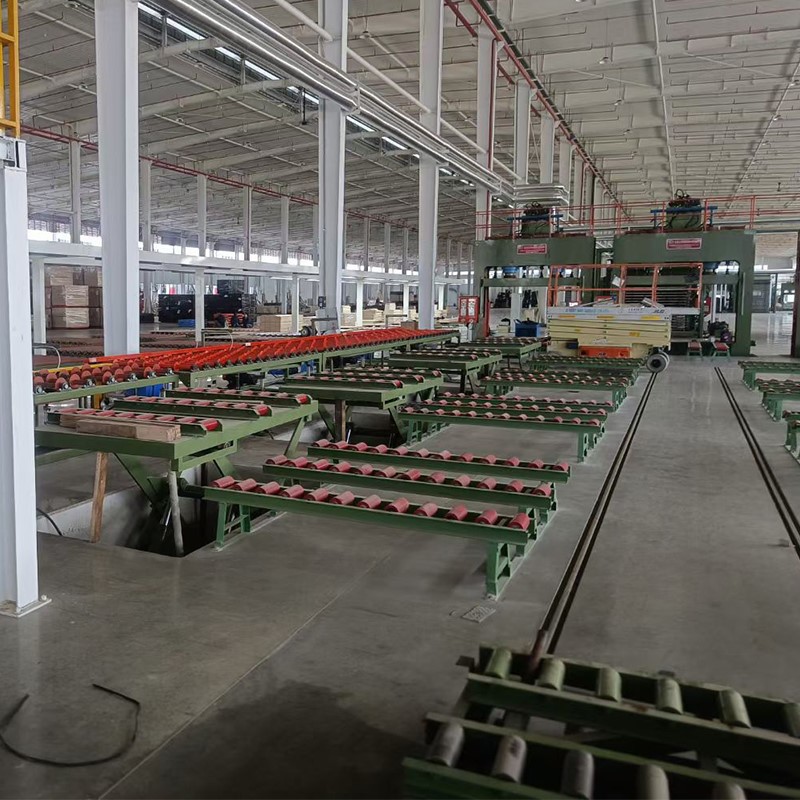

Sometimes you do not need a powered conveyor. You just need boards to slide. Our Non-Powered Conveyor Rollers do this job. There is no motor. No gears. No electricity. Workers give the board a small push. The rollers turn. The board slides. A large custom furniture shop used 100 meters of these rollers. They put them in their packing area and warehouse. Workers put packed boards on the rollers. A small push sends the board to the truck. Their packing speed went up 50%. And they used no power at all.
Strong Steel Frame and Rollers

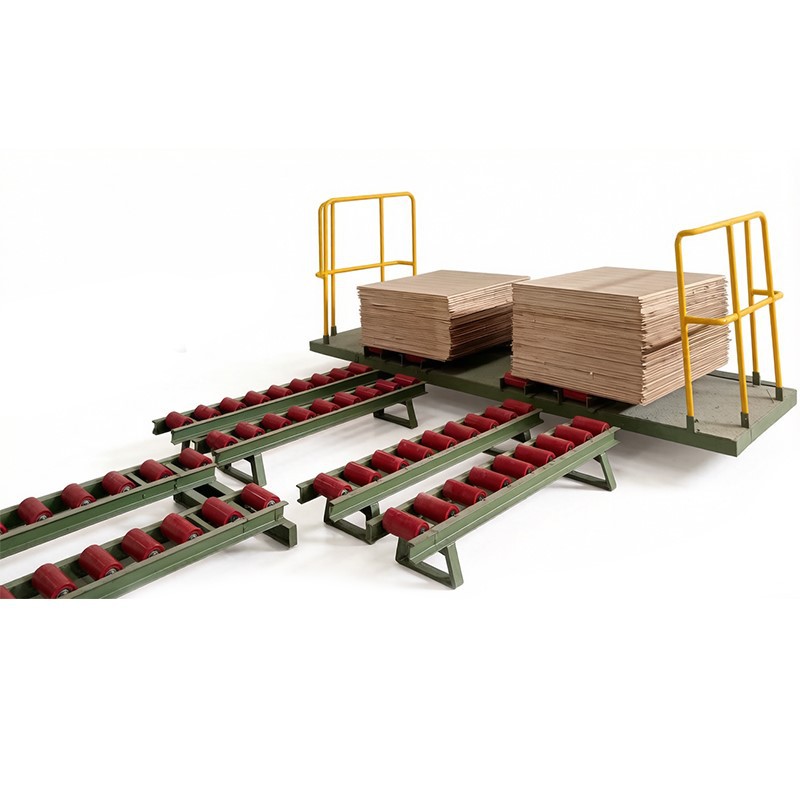

The Non-Powered Conveyor Rollers use a steel frame. The channel is #8 steel. That is strong. The rollers are Ø89mm. The roller length is 190mm. The total width per section is 220mm. The rollers have bearings inside. They spin freely. The frame has legs. You set the height. You can also put the frame on a slope. A 3 to 10 degree slope makes boards slide by themselves. No push needed.
Build Your Own Conveyor Anywhere
The rollers come in sections. You bolt sections together. Make it 5 meters long. Make it 50 meters long. Change it later if you need to. You can also add curves. The rollers work with powered conveyors too. Put unpowered rollers before and after a powered section. The bearings are sealed. Dust and dirt stay out. The rollers will spin for years with no grease. Here are the specs.
|
Parameter |
Value |
|
Roller Size |
Ø89mm190mm220mm |
|
Frame Material |
#8 Channel steel |
|
Roller Material |
Carbon steel (stainless or full carbon available) |
|
Bearing Type |
Sealed precision bearing |
|
Slope for Self-Slide |
3 to 10 degrees |
|
Custom Options |
Diameter, length, material, bearing |
|
Use For |
Warehouses, assembly lines, loading docks |
We deliver the sections. You bolt them together. No electrician needed. This is the lowest cost way to move boards. Choose us for zero-energy board moving.
