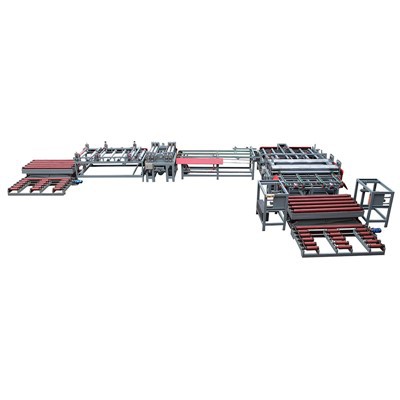

Suction Cups Load and Unload. No One Touches the Board.
Scratches happen when workers handle boards. Fingers leave marks. Edges get bumped. Our Board Edger Machine stops this. Suction cups pick up each board. They put it on the feed belt. The board goes through the blades. Suction cups pick up the finished board. They stack it on a pallet. No one touches the board from start to finish. A large furniture maker in Guangdong used this machine. They edge 10,000 boards every day. Before, workers had to lift each board onto the feed table. This caused scratches. After switching to our machine, scratches went to zero. They also saved 3 workers per shift.

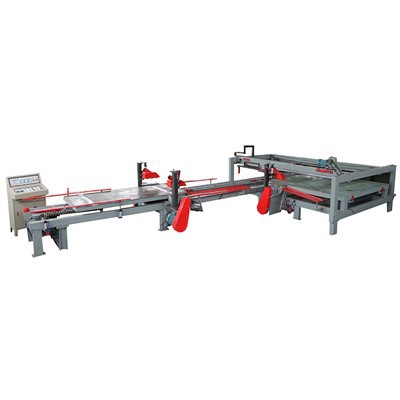

Four Blades Cut All Sides at Once
The Board Edger Machine uses four blades. They cut all four sides in one pass. The blades are Ø255mm with 120 teeth. Each blade has its own 7.5KW motor. Feed speed is 0 to 30 meters per minute. You can adjust it for different board types. The cut is clean. No tears. No fuzz. The machine holds size to less than 1mm diagonal error. That is better than hand cutting. The machine uses a Mitsubishi PLC and a touch screen. Change board sizes with a few touches.
Safety and Dust Control
The machine has a full safety cover. Light sensors stop the machine if someone gets too close. Dust ports connect to your dust collector. Your shop stays clean. The machine is modular. You can add more infeed or outfeed conveyors. You can also add a label printer or a separate stacker. Here are the specs.
|
Parameter |
Value |
|
Board Size |
4x8 ft (1220*2440mm) |
|
Blade Size |
Φ255Φ25.4120T |
|
Feed Speed |
0 to 30 m/min (variable) |
|
Main Motor Power |
7.5kW x 4 units |
|
Voltage |
380V/50Hz (other voltages available) |
|
Total Power |
51.85kW |
|
Machine Weight |
About 15 tons |
We have built machines for 26 years. We set up your machine and train your workers. This machine is for furniture, concrete form, and packaging board shops. Choose us for no-touch edging.
