For Rough Boards with Uneven Edges

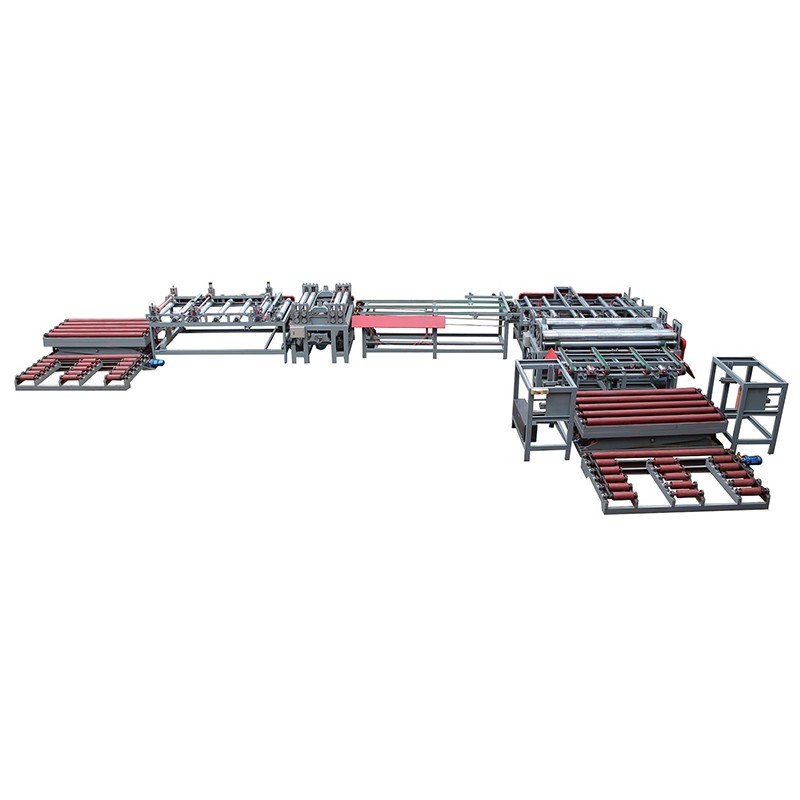

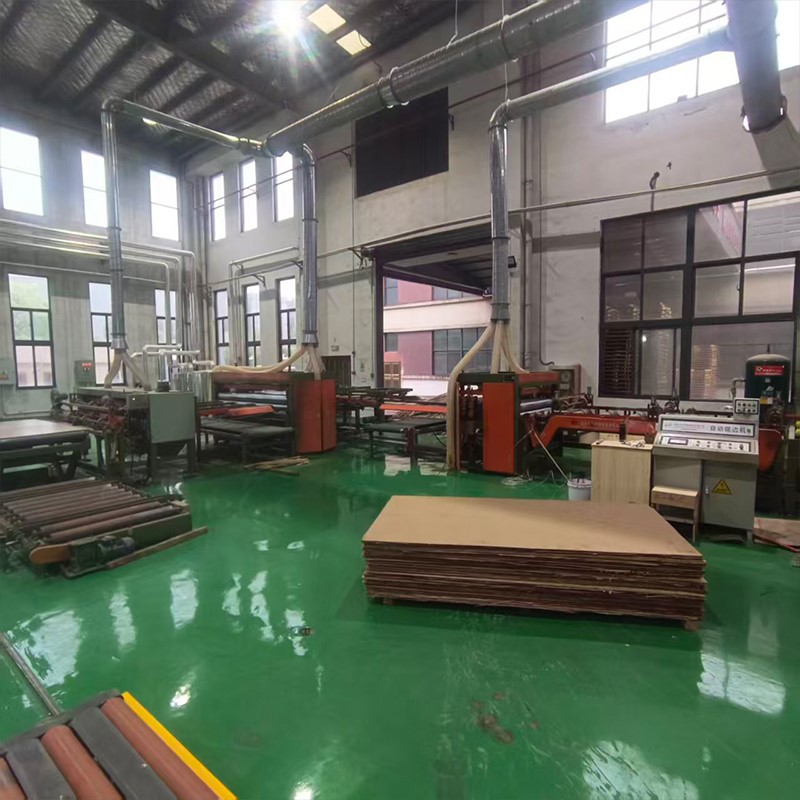

Rough boards are hard to handle. Edges are uneven. Surfaces are rough. Workers cannot get a good grip. Our Sawmill Board Edger is made for this job. It uses suction cups to pick up rough boards. The cups are big and strong. They grip even rough surfaces. The board goes through the four blades. It comes out as a perfect rectangle. A plywood factory in Hubei used this machine. Before, they trimmed rough boards by hand. It was slow and they wasted a lot of wood. The new machine increased their trimming speed by 4 times. It also saved 8% on wood because the cuts were more precise.
Four Blades for Rough Board Trimming
The Sawmill Board Edger has four blades. Each is 7.5KW. The blades are Ø255mm with 120 teeth. They cut all four sides at once. The machine uses a Mitsubishi PLC. Set the size you want. The machine does the rest. Feed speed is 0 to 30 meters per minute. The machine can handle boards that are not perfectly square. Sensors find the best position before cutting. This saves wood. You cut off only what you need to.
Full Auto from Rough to Finished
The machine loads itself. Suction cups pick up each rough board. The board moves to the feed belt. After cutting, a stacker piles the finished boards. No one touches the boards. The machine has full safety covers and light sensors. Dust ports keep your shop clean. The machine is modular. Add more conveyors or stackers as you grow. Here are the specs.
|
Parameter |
Value |
|
Board Size |
4x8 ft (1220*2440mm) |
|
Blade Size |
Φ255Φ25.4120T |
|
Feed Speed |
0 to 30 m/min (variable) |
|
Main Motor Power |
7.5kW x 4 units |
|
Voltage |
380V/50Hz (other voltages available) |
|
Total Power |
51.85kW |
|
Machine Weight |
About 15 tons |
We set up your machine and train your workers. This machine turns rough boards into standard semi-finished boards. Choose us to clean up your rough board process.
