Front and Back Rollers with Ø400 Size

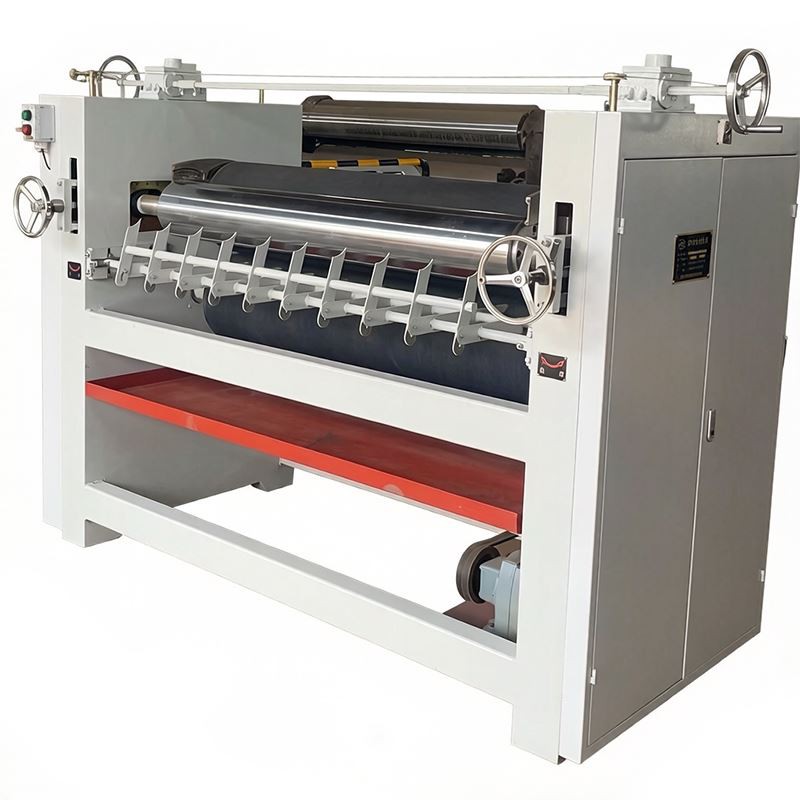

Two different ways to do double side gluing. The last model put rollers on top and bottom. This one puts them front and back. The Wood Glue Spreader uses the front-back design. The board goes in from the front. The first pair of rollers glue the top. The board moves forward. The second pair glue the bottom. One pass. Both sides done. No flipping. No scratches. The rollers are Ø400mm. That is big. Big rollers handle thick glue better. They put down a more even coat.
Simple Design for Easy Operation
The Wood Glue Spreader is easy to use. You set the roller gaps by turning hand wheels. This controls how much glue goes on each side. The glue tank is built in. Side seals stop leaks. You save 15% to 25% on glue compared to hand gluing. The motor is 4KW with a variable speed controller. You can match the speed to your line. One worker feeds boards. The machine does the gluing. Your labor cost goes down. Your output goes up. No more waiting for glue to dry before flipping.
Built for Daily Shop Work
The chrome rollers are mirror polished. Glue does not stick. They resist rust and wear. The rubber rollers use natural rubber at 50 hardness. The frame is thick steel plate. No shaking. The machine has an emergency stop button. Safety guards are standard. Core parts come off for cleaning. Daily maintenance is simple. Here are the specs.
|
Parameter |
Value |
|
Rubber Roller Size |
Ø400*1500mm (Natural rubber, 50 hardness) |
|
Glue Roller Size |
Ø240*1500mm (Chrome plated alloy) |
|
Roller Arrangement |
Front and back |
|
Glue Type |
Double side |
|
Motor Power |
4KW (with variable speed) |
|
Machine Weight |
About 2100kg |
|
Machine Size |
3000mm950mm1500mm |
We give you one-stop setup and training. This machine is for shops that want double side gluing with a front-back design. Contact us to see which layout fits your line better.
