2.7 Meter Wide Double Side Gluing

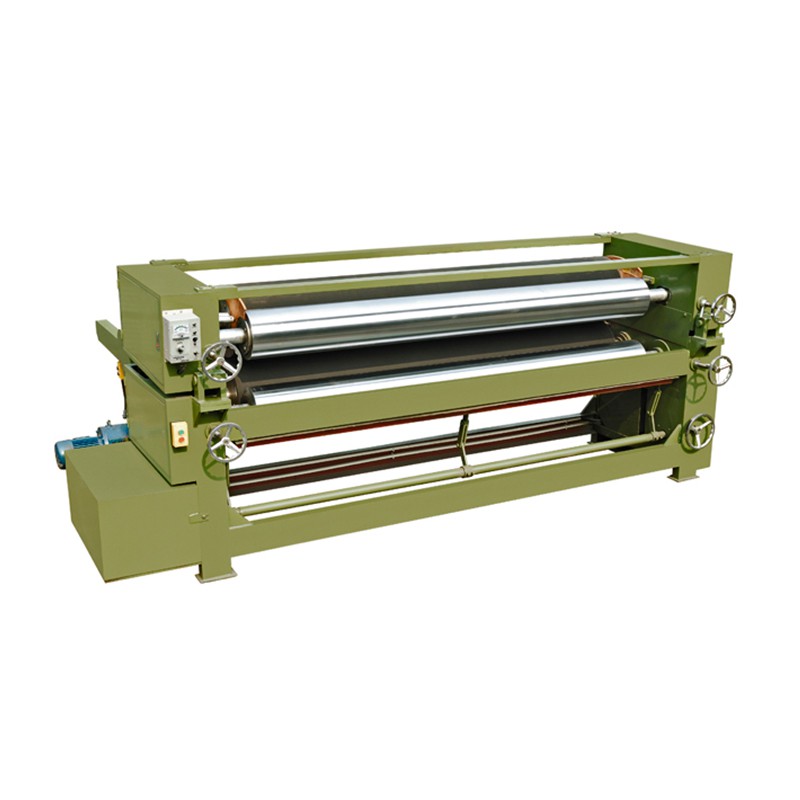

Big boards need a big gluer. The Glue Spreader for Woodworking covers a full 4x8 foot board in one pass. The rubber rollers are Ø420mm and 2700mm long. The glue rollers are Ø270mm. Both sides get glued at the same time. The rollers are in a top-bottom layout. Top pair glues the top. Bottom pair glues the bottom. Your board goes in once. It comes out with glue on both sides. No second pass. No flipping. This machine is for shops that make big boards every day.
Powerful Motor for Big Rollers
Big rollers need big power. The motor on the Glue Spreader for Woodworking is 5.5KW. It has a variable speed controller. You can slow it down for thick glue. Speed it up for thin glue. The drive system is strong. No jamming. No slipping. The built-in glue tanks have side seals. Glue does not leak out. You save 15% to 25% compared to gluing by hand. One worker runs the machine. Your labor cost drops. Your output goes up.
Heavy Duty Frame for Heavy Work
The chrome rollers are mirror polished. Glue does not stick. They resist rust and wear. The rubber rollers use natural rubber at 50 hardness. The frame is extra thick steel plate. No shaking even under heavy load. The machine has an emergency stop button. Safety guards protect your workers. Core parts come off for cleaning. Here are the specs.
|
Parameter |
Value |
|
Rubber Roller Size |
Ø420*2700mm (Natural rubber, 50 hardness) |
|
Glue Roller Size |
Ø270*2700mm (Chrome plated alloy) |
|
Roller Arrangement |
Top and bottom |
|
Glue Type |
Double side |
|
Motor Power |
5.5KW (with variable speed) |
|
Machine Weight |
About 4000kg |
|
Machine Size |
3750mm1450mm1700mm |
We have 26 years of experience. We set up your machine and train your workers. This machine replaces two slow passes with one fast pass. Contact us to glue your big boards in one go.
