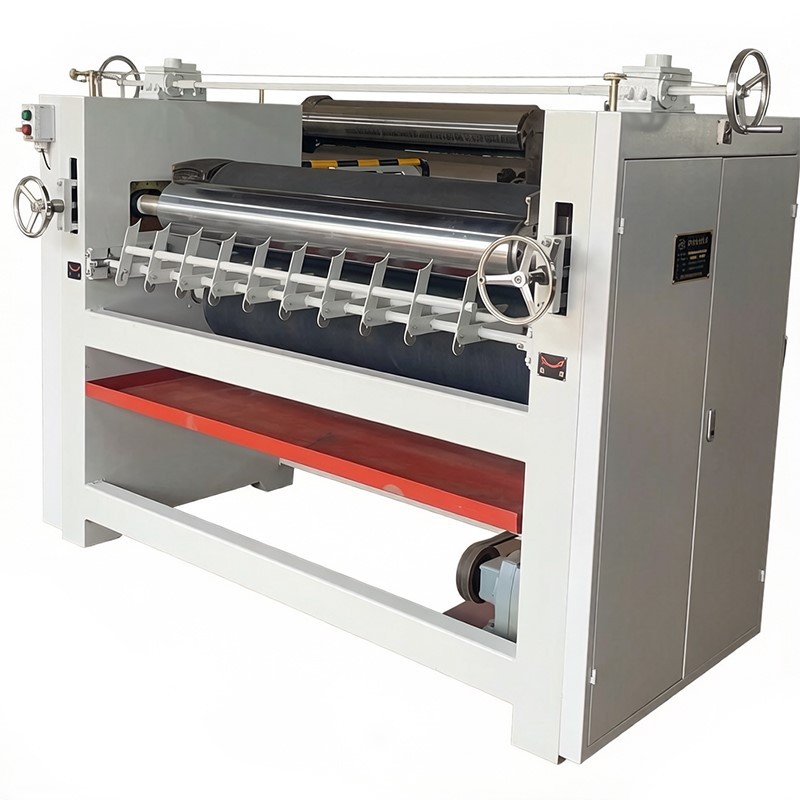

Big Ø400 Rollers for Double Side Gluing
Small rollers work fine for thin glue. But thick glue needs more surface area. Our Woodworking Glue Spreader uses Ø400mm rubber rollers. That is twice the size of standard rollers. The bigger size picks up more glue. It puts down a thicker, more even coat. The machine has four rollers. Two on top. Two on bottom. Both sides get glued at the same time. One of our clients used to glue one side at a time. They had to flip every board. That took two workers and a lot of time. Now one worker feeds boards. The machine does the rest. Their output went up three times.
Save Glue and Save Time
Glue is one of your biggest costs. The Woodworking Glue Spreader helps you waste less. The glue tank is built into the machine. Side seals stop leaks. This saves 15% to 25% compared to hand gluing. The motor is 4KW with a variable speed controller. You can slow it down for thick glue. Speed it up for thin glue. The drive system is smooth. No skipping. No jamming. One worker runs the whole operation. Your labor cost drops. Your output goes up.
Strong Frame for Heavy Use
The chrome rollers are mirror polished. Glue slides right off. They resist rust and wear. The rubber rollers use natural rubber at 50 hardness. The frame is thick steel plate. No shaking. The machine has an emergency stop button. Safety guards protect your workers. Most parts come off for cleaning. Daily maintenance is easy. Here are the specs.
|
Parameter |
Value |
|
Rubber Roller Size |
Ø400*1500mm (Natural rubber, 50 hardness) |
|
Glue Roller Size |
Ø240*1500mm (Chrome plated alloy) |
|
Roller Arrangement |
Top and bottom |
|
Glue Type |
Double side |
|
Motor Power |
4KW (with variable speed) |
|
Machine Weight |
About 2100kg |
|
Machine Size |
3000mm950mm1500mm |
We have built machines for 26 years. We set up your machine and train your workers. This is a good upgrade for shops still gluing one side at a time. Contact us to double your gluing speed.
