Glue Both Sides at Once. No Need to Flip.
Gluing two sides of a board used to be slow. You glued one side. You waited for it to dry. You flipped the board. You glued the other side. This took time and often scratched the board. Our Double Side Laminating Machine fixes this. It has two sets of rollers. One set on top. One set on the bottom. Both work at the same time. The board goes in once. Both sides come out with glue. No flipping. No waiting. No scratches. One of our clients switched to this machine. Their output went up by three times. They only need one worker to feed boards now.
Four Rollers Working Together

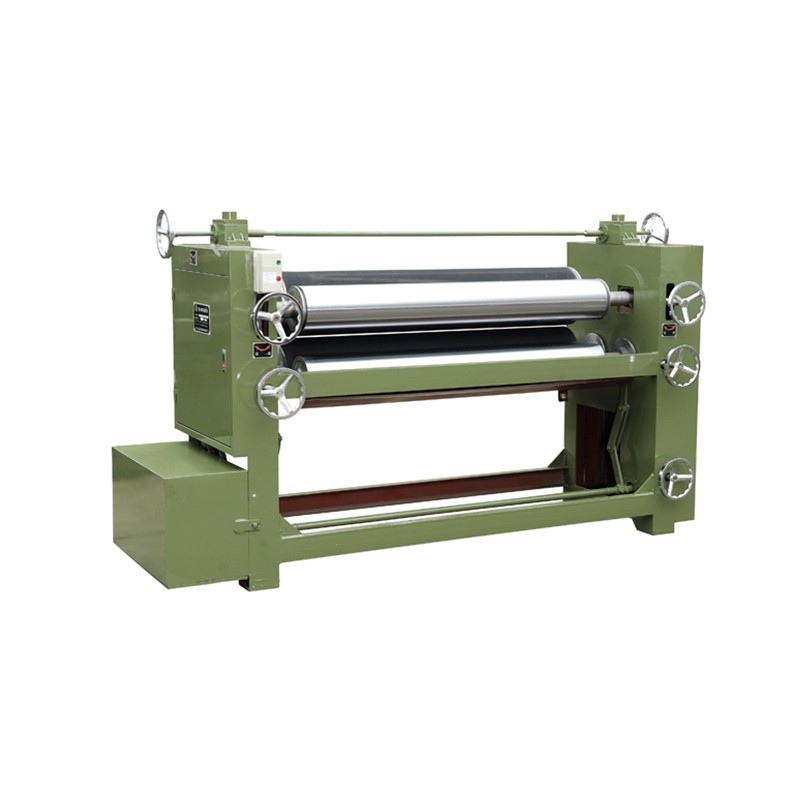

The Double Side Laminating Machine uses four rollers. Two are rubber rollers. Two are chrome glue rollers. The top and bottom pairs work together. You can adjust the gap between rollers by turning hand wheels. This lets you control how much glue goes on each side. The built-in glue tanks have side seals. No leaks. No waste. You save 15% to 25% on glue compared to hand gluing. The motor is 2.2KW. You can add a variable speed controller if you need it. The drive system is smooth and quiet.
Easy to Clean and Safe to Run
The chrome rollers are mirror polished. Glue does not stick. They resist rust and wear. The rubber rollers use natural rubber at 50 hardness. The frame is thick steel plate. No shaking during work. The machine has an emergency stop button and safety guards. Core parts come off for cleaning. Daily maintenance is simple. Here are the specs.
|
Parameter |
Value |
|
Rubber Roller Size |
Ø280*1500mm (Natural rubber, 50 hardness) |
|
Glue Roller Size |
Ø190*1500mm (Chrome plated alloy) |
|
Roller Arrangement |
Top and bottom |
|
Glue Type |
Double side |
|
Motor Power |
2.2KW (upgrade to variable speed) |
|
Machine Weight |
About 1300kg |
|
Machine Size |
2760mm750mm1500mm |
We set up your machine and train your team. This is a must-have upgrade if you now glue two sides in two steps. Contact us to glue both sides in one pass.
