Two Tilted Heads for Double the Output

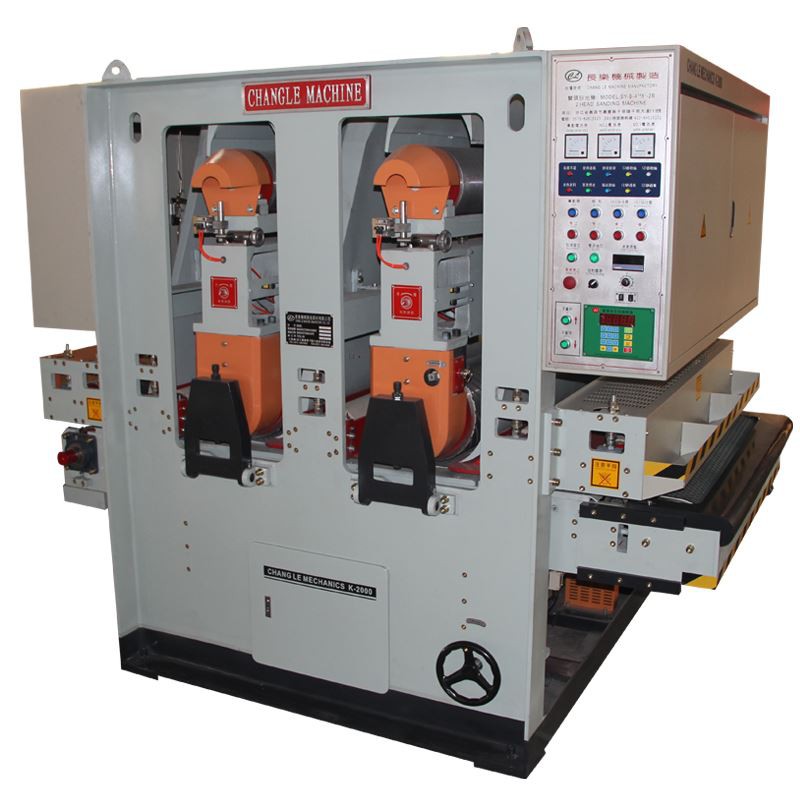

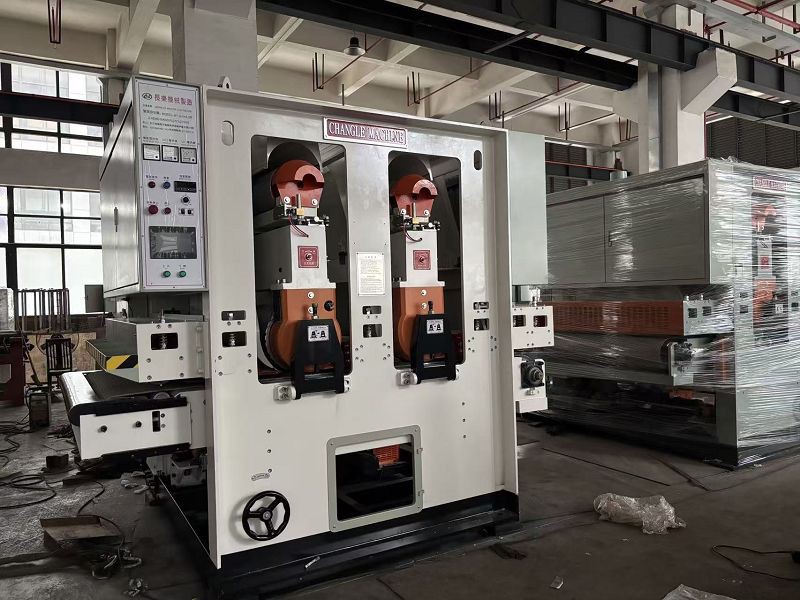

Single head sanders take one pass. You need a second machine or a second pass. The Double Head Sanding Machine has two tilted heads. Both are set at 5 to 8 degrees. They face opposite directions. The first head sands. The board moves forward. The second head sands again. One pass. Two sanding actions. A large plywood factory making 600,000 sheets per year used this machine. Before, they used two single head sanders in a line. That took more floor space. The double head machine cut their floor space by 30% and doubled their output.
Tilted Heads Give a Better Surface
Tilted heads cut at an angle. This is called shear cutting. It leaves no waves. No bounce marks. No edge rounding. The Double Head Sanding Machine uses this technology on both heads. Your boards come out flat and smooth. The first head takes off most of the material. The second head makes the surface smooth. The main motors are 55KW and 37KW. The feed motor is 7.5KW with variable speed. Feed speed is 10 to 50 meters per minute.
Built for Heavy Work All Day
Two heads make more vibration. The frame is extra thick. Both heads are cast steel. The machine stays steady. The sanding belt is 2720mm by 1330mm. The sanding roller is Ø370mm. The machine has a PLC and touch screen. You set the thickness. The machine controls belt tension and tracking. It also has a thickness sensor to stop jams. Here are the specs.
|
Parameter |
Value |
|
Max Working Width |
1300mm (custom available) |
|
Thickness Range |
3 to 40mm |
|
Sanding Belt Size |
2720*1330mm |
|
Sanding Roller Size |
Ø370*1365mm (Low alloy steel) |
|
Main Motor Power |
55kW and 37kW (optional) |
|
Feed Motor Power |
7.5kw variable speed |
|
Feed Speed |
10 to 50 m/min |
|
Belt Speed |
20 to 30 m/s |
|
Machine Weight |
About 11 to 12 tons |
We have 26 years of experience. We set up your machine and train your workers. This machine lasts 10 to 20 years. Choose us to double your sanding output.
