A Smart Cart That Runs on Rails. No Driver Needed.

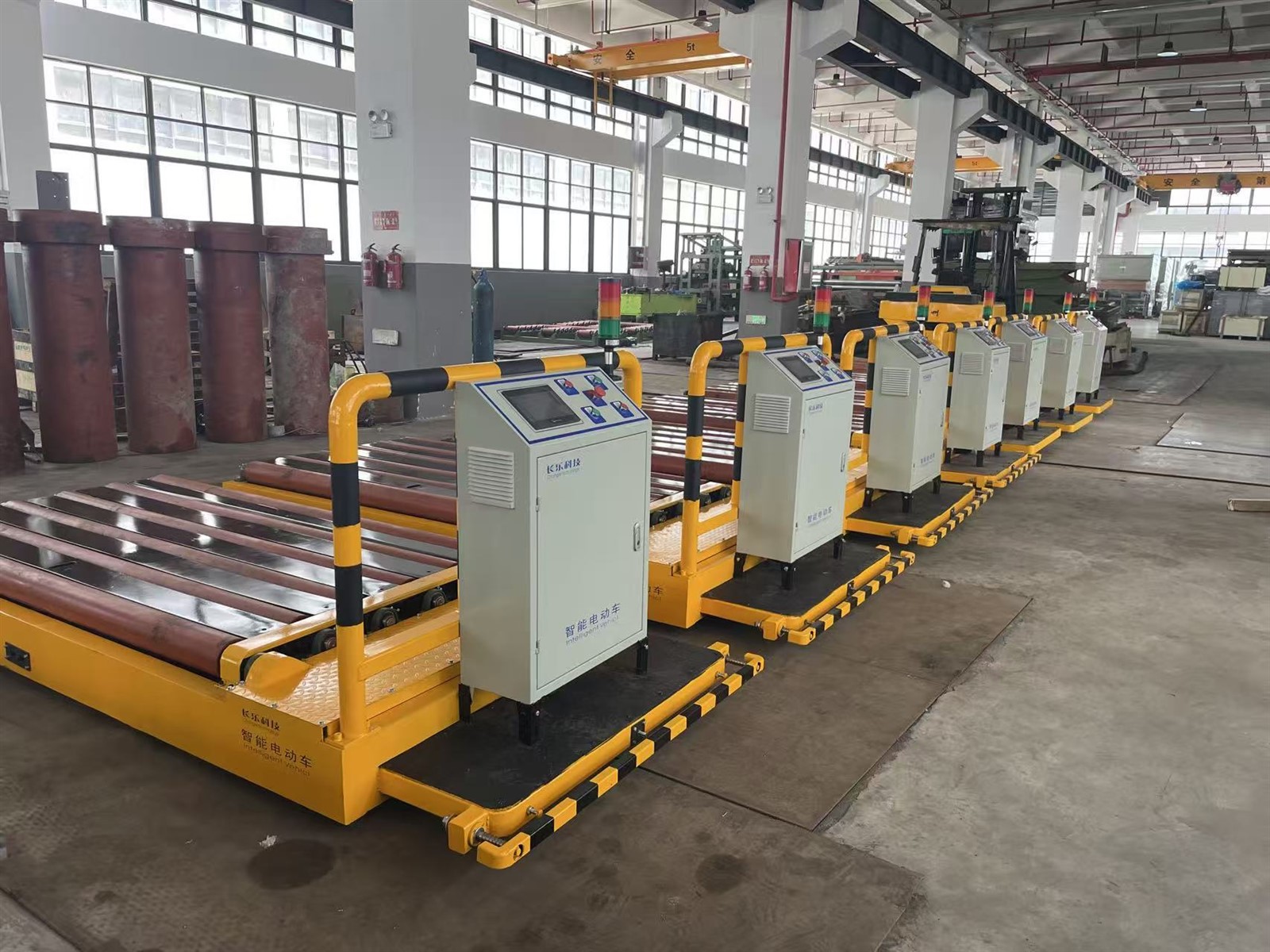

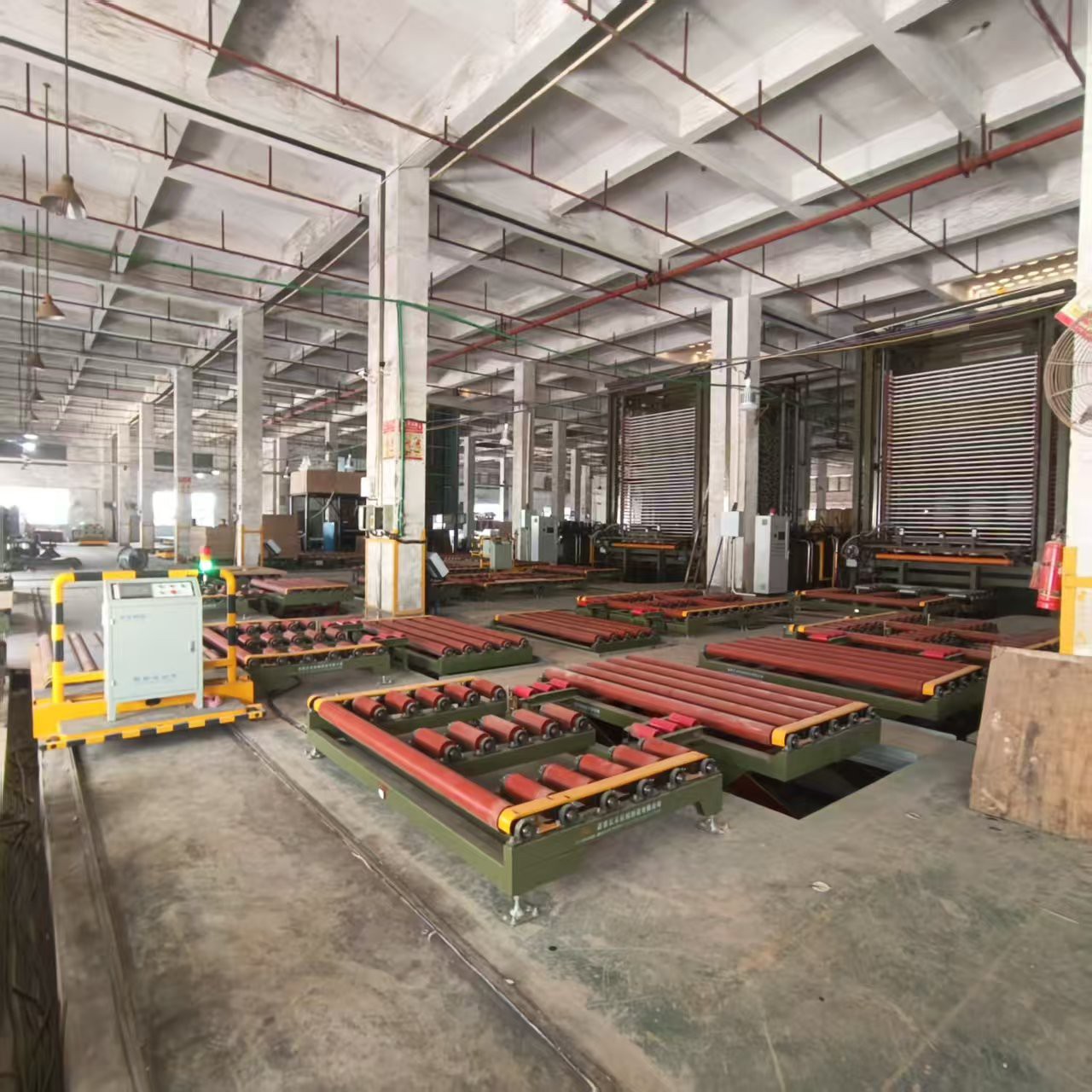

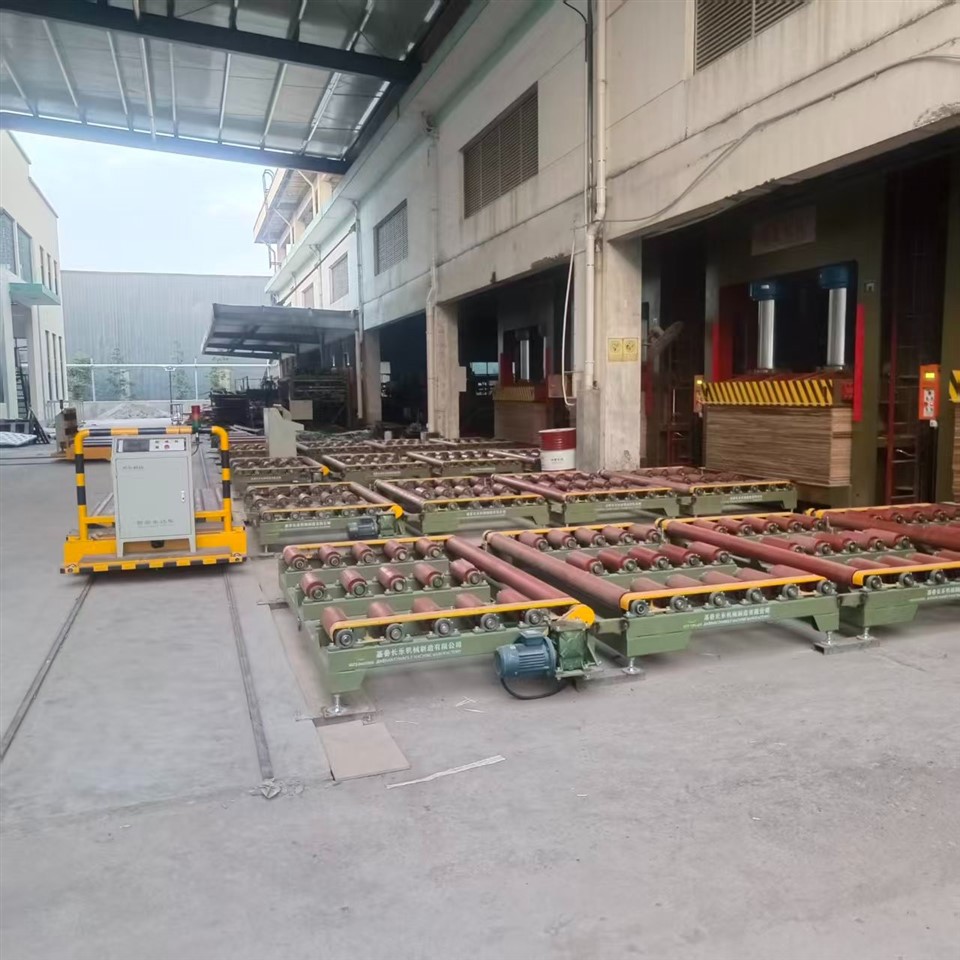

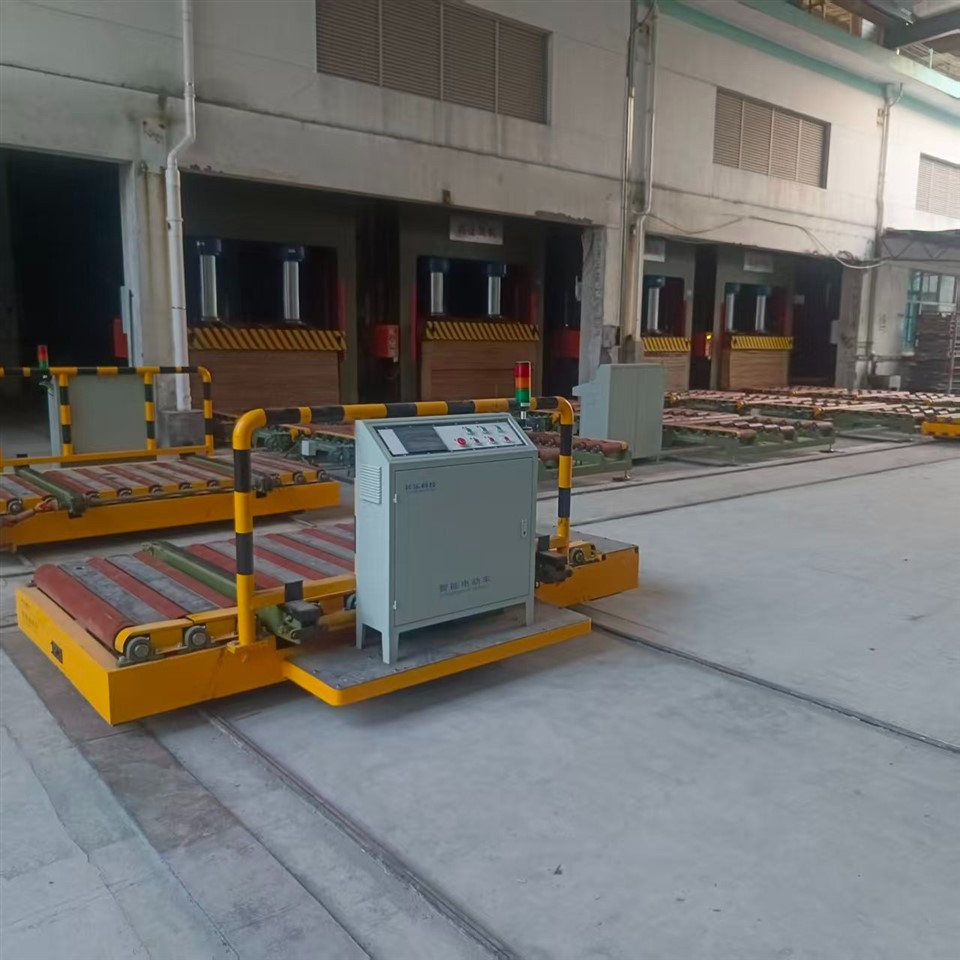

Moving boards between machines takes workers. They walk back and forth all day. Our RGV Intelligent Transport Vehicle does this job. RGV stands for Rail Guided Vehicle. It runs on rails. It carries boards. It goes from machine to machine. A large plywood factory put 3 of these in their line. The RGVs move boards between hot press, cold press, glue machine, and sander. Before, they had 6 workers moving boards. Now one person watches a screen. The RGVs do the work. And they run 24 hours a day.
Covers 10 to 20 Work Stations

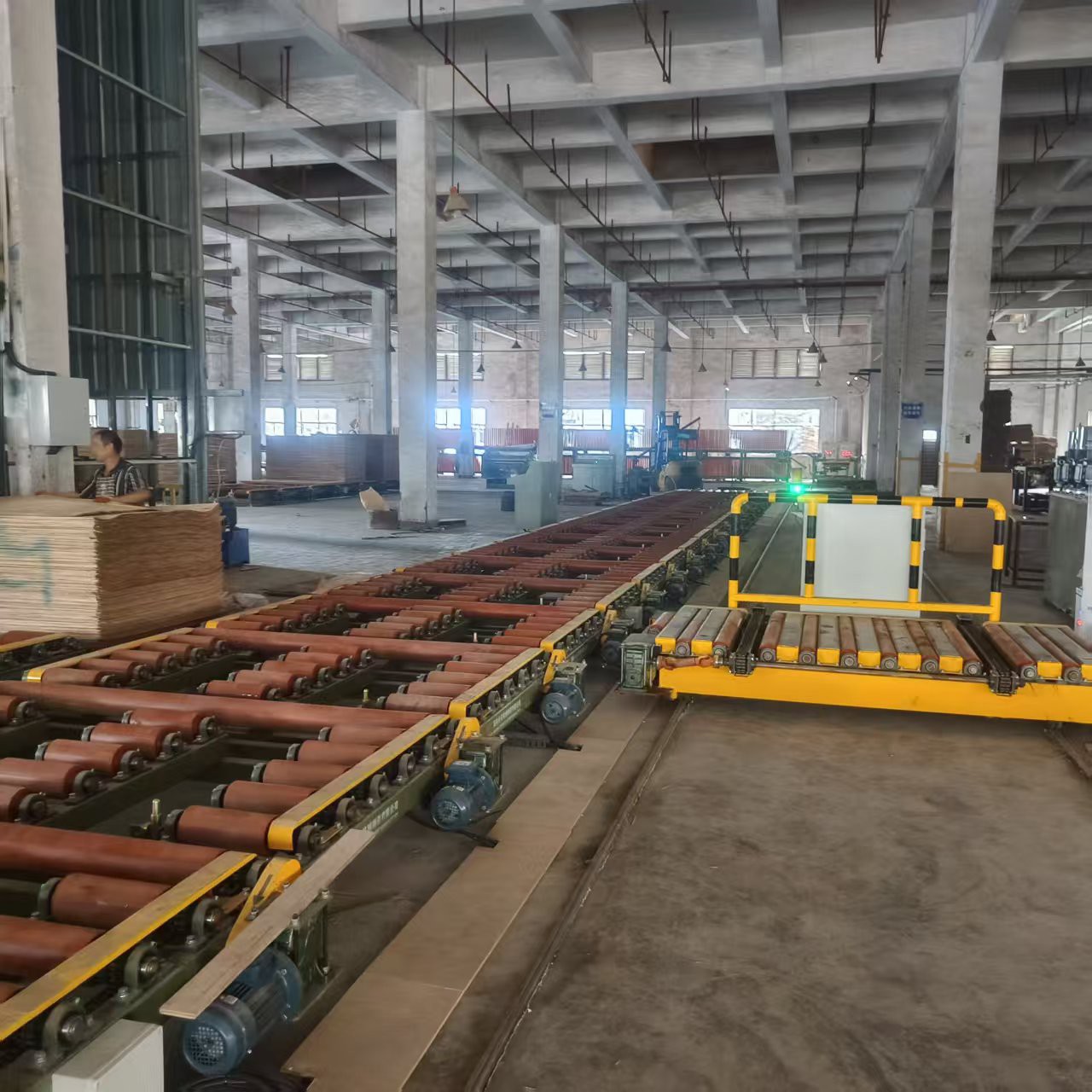

The RGV runs on two rails. You lay the rails where you want. The RGV can go to many stations. You program the path. The RGV knows where to go. At each station, the RGV lines up with the machine. Rollers on the RGV push the boards onto the machine. The RGV can talk to your main computer. It can work with your PLC system. Multiple RGVs can run on the same track. They talk to each other. They do not crash.
Safe and Easy to Use
The RGV has bumpers. It has lights. It makes noise when moving. It stops if something is in the way. You can run it in manual mode for setup. Switch to auto mode for production. The RGV carries 3 tons. Speed is 0 to 30 meters per minute. The power is 36V. The motor is 1.5KW. Here are the specs.
|
Parameter |
Value |
|
Rated Load |
3 tons |
|
Rail Type |
Double rail |
|
Travel Speed |
0 to 30 m/min (variable) |
|
Drive Type |
Electric motor |
|
Control Mode |
Manual or automatic |
|
Voltage |
36V |
|
Motor Power |
1.5kW |
|
Communication |
PLC, MES system ready |
We set up the rails and the RGV. We program the paths. This machine cuts transport labor by over 40%. Choose us for smart, driverless board moving.
