Suction Cups Pick Up One Board at a Time. No Double Boards. No Misses.

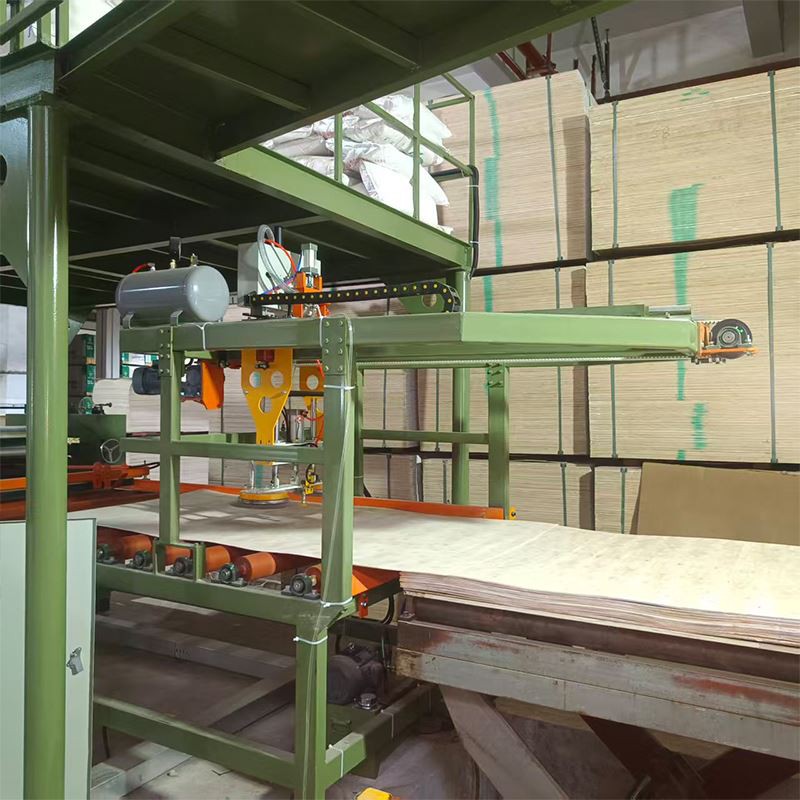

Feeding boards into a sander or press by hand is slow. Workers get tired. Boards get scratched. Our Longitudinal Board Feeding Suction Frame does it by itself. Suction cups pick up one board. The arm moves forward. The board goes onto the feed belt. The machine repeats. A plywood factory used this on their sander line. Before, two workers fed boards by hand. They were slow and often scratched the boards. Now the machine feeds. No workers needed. Feed speed is 10 boards per minute. No more scratches.
Fast Air Operation and Precision Rails

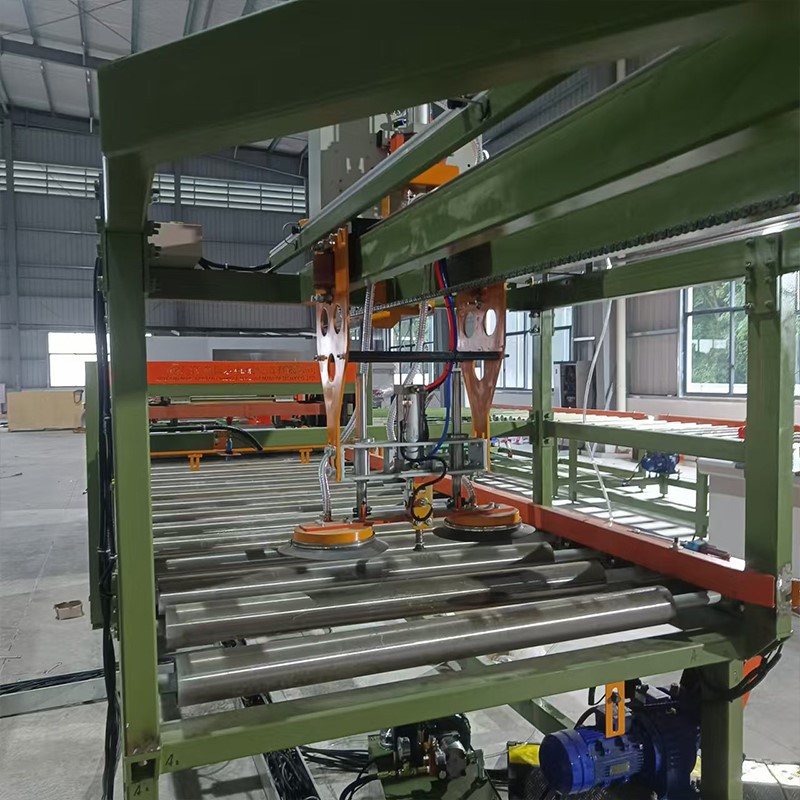

The Longitudinal Board Feeding Suction Frame uses air cylinders. They move fast. The PLC controls the timing. You set the board size. The machine adjusts. The suction cups are Ø300mm. Two cups on the arm. They grip strong. The arm moves on linear rails. The movement is smooth. No shaking. The position is exact every time. The machine feeds boards from 9mm to 30mm thick. Feed direction is longitudinal (lengthwise).
Strong Frame for All-Day Work
The frame is thick steel. It does not bend. Wires and air hoses run through a cable chain. No tangles. No wear. The machine has safety sensors. If a board does not pick up, the machine stops and alerts you. The motor for the belt is 0.75KW. Here are the specs.
|
Parameter |
Value |
|
Feed Motor Power |
0.75KW |
|
Voltage |
380V/50Hz (other voltages available) |
|
Board Thickness |
9 to 30mm |
|
Suction Cup Size |
Ø300mm x 2 pcs |
|
Feed Speed |
8 to 12 boards per minute |
|
Feed Direction |
Longitudinal |
We set up the feeder and train your workers. This machine replaces 2 to 3 workers. It raises line output by 30%. Choose us for auto feeding.
