Just a Lift. No Rollers. Simple and Strong.

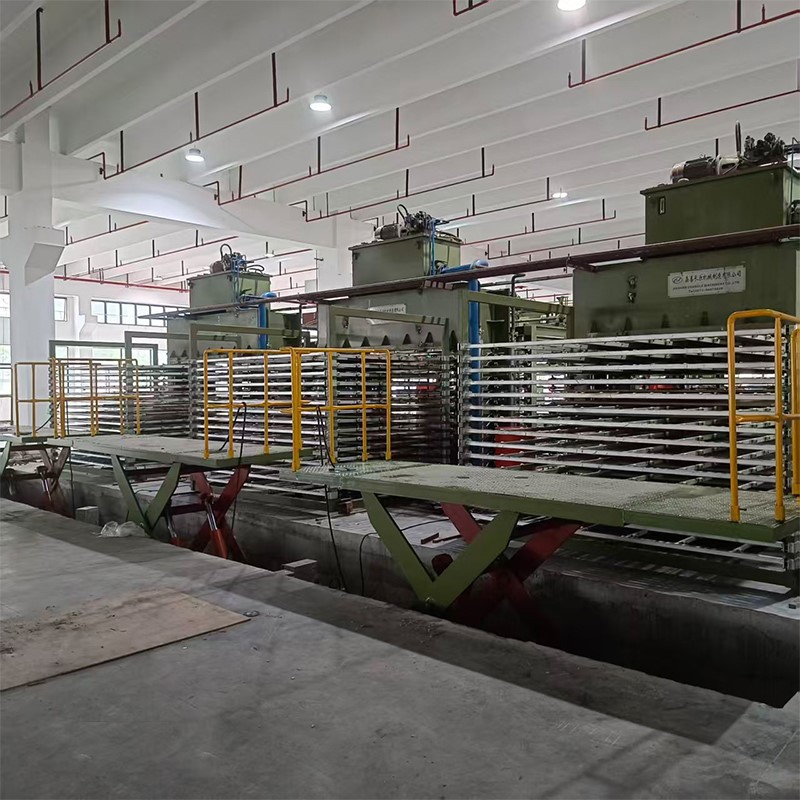

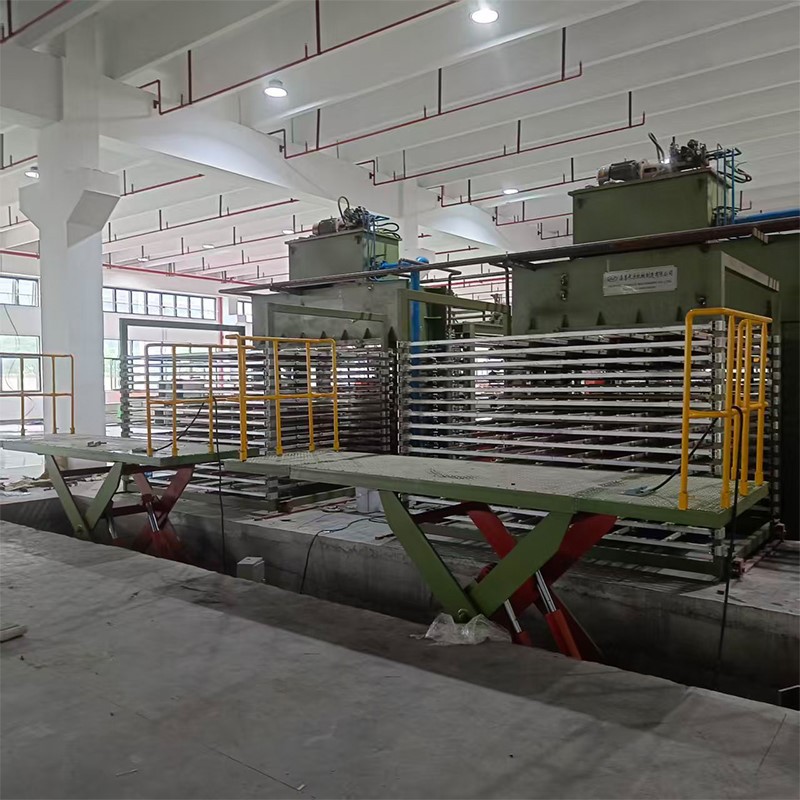

Sometimes you just need to lift a stack of boards. You do not need rollers. You have a forklift or workers to move the stack. Our Workshop Lift Table is for this job. It is a basic hydraulic scissor lift. The table is flat steel. Put a stack of boards on it. Lift it to the right height. Take the boards off. A plywood warehouse used these lifts. They used them with forklifts for high stacking. Before, the forklift driver had to lift each stack to 2 meters high. That was dangerous and slow. Now the forklift puts the stack on the lift. The lift goes up. The worker pushes the stack into the rack. Stacking speed went up 50%. No more high lift danger.
One Machine. Many Uses.

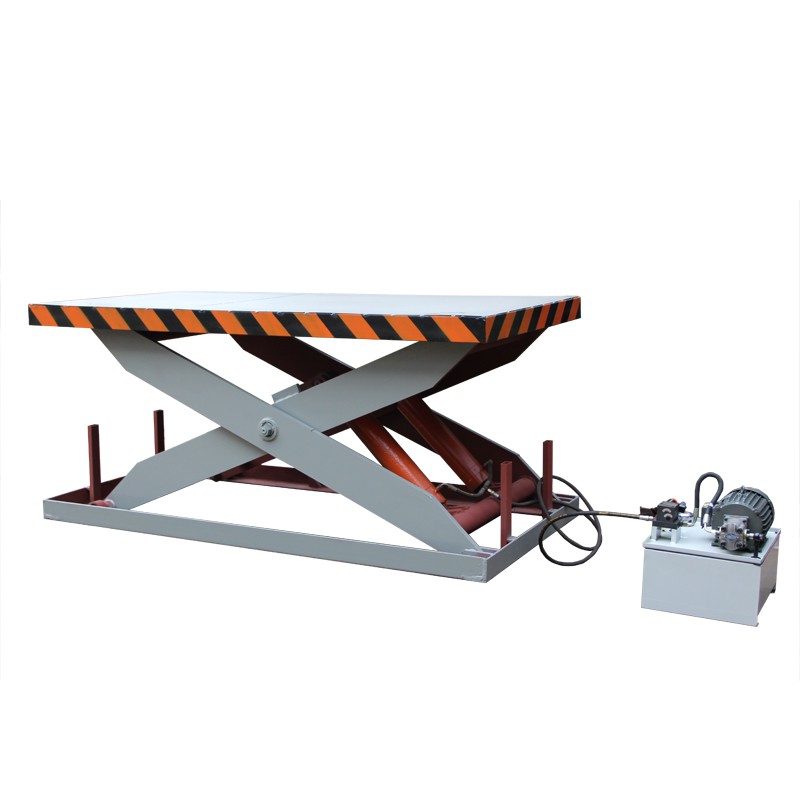

The Workshop Lift Table is simple. But that makes it useful. Use it to lift boards to a machine feed height. Use it to lower boards from a machine exit. Use it to stack pallets. Use it as a portable work table. The lift holds 3 tons. The table size is 2400mm by 1200mm. That fits 4x8 foot boards. Lift stroke is 1200mm. You can customize the size. You can customize the weight capacity. You can customize the lift height.
Built to Last
The scissor arms are strong steel. Two hydraulic cylinders lift the table. The lift is smooth. No shaking. The lift has safety rails. It has overload protection. A manual valve lets you lower the table if power fails. Limit switches stop the lift at the right height. You control it with buttons or a foot switch. Here are the specs.
|
Parameter |
Value |
|
Rated Load |
3 tons |
|
Table Size |
2400*1200mm (fits 4x8 ft boards) |
|
Lift Stroke |
1200mm |
|
Lowest Height |
430mm |
|
Lift Speed |
3 to 5 m/min (adjustable) |
|
Drive Type |
Two hydraulic cylinders |
|
Motor Power |
2.2kW |
|
Voltage |
380V/50Hz (other voltages available) |
|
Control |
Button, foot switch, or PLC |
We set up your lift and train your workers. This machine is small and easy to install. Choose us to solve your basic lifting needs.
